BL-3D-5600 is a compact 5-axis CNC wire bending machine designed for precision processing of soft wire Φ2.5–6.0mm and hard wire Φ2.5–4.0mm. Featuring a 600mm bending stroke, 7.8KW total power, and a maximum wire feeding speed of 90m\/min, it delivers high-accuracy bending with stable and repeatable performance. Its rigid 1800KG machine frame ensures excellent stability while occupying minimal workshop space, making it an ideal solution for manufacturing automotive wire parts, furniture hardware, industrial brackets, display racks, household products, and other precision wire components requiring consistent quality and efficient production.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-5600 5-Axis CNC Wire Bending Machine | Belan","seo_keywords":["5 axis cnc wire bending machine","wire bending machine","cnc wire forming machine","wire former"],"seo_description":"BL-3D-5600 5-axis CNC wire bending machine handles soft wire 2.5-6.0mm & hard wire 2.5-4.0mm. 7.8KW power, 1800KG. Precision rotary-head wire forming for automotive seat frames, furniture spr","url":"bl-3d-5600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 10:38","updated_at":"2026-07-15 14:26","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a62.5-6.0mm \/ Hard \u03a62.5-4.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"7.8KW","title":"TOTAL POWER"},{"txt":"1800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e82c5ef1909-DSC01901.JPG","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-5600<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ2.5-6.0mm \/ Hard Φ2.5-4.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
7.8KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3000×1900×1900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1300mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
450Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2000×1550×1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e836bc3c9f0-3D%20Rotary%20Head%20Wire%20Bending%20Machine%20BL-3D-5600.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e82e921573e-jimeng-2026-02-24-8980-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"3d wire bending bl-3d-5600 of The car seat skeleton is bent","description":"BL-3D-5600: 5-axis high-precision wire bending machine for efficient & stable automatic forming of soft and hard wires"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4c7acae8-Samples1.png","desc":"Automotive","title":"3.0mm Car Seat Frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4ca70280-Samples6.png","desc":"Motorcycle","title":"5.0 mm Motorcycle Dashboard Bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4cbd3017-Samples2.png","desc":"Hardware","title":"5.0 Mm Hardware Pendant"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d08c8cd-Samples4.png","desc":"Automotive","title":"5.0mm Auto Parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d2ddba5-Samples3.png","desc":"Tool","title":"5.0mm Hardware Tools Pendant"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d5077a7-Samples5.png","desc":"Kitchen&Bath","title":"5.0mm Kitchen And Bathroom Hardware Pendant"}],"diy_faq":"8xHZZwoPTNQQsht1HzS6G,MQv5_VhiVuXtCnBGkEOuK","category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:26"},{"id":3,"guid":"Cv3-FcVKTh63R7xBD-4EW","sort":14,"name":"BL-3D-5800 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca048ae6b-Balan2.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca0db4b73-Balan4.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca116dfba-Balan3.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca1ad96b8-Balan1.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca3ec0917-Balan.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca47144ed-Belan5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca5f7df45-Belan8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca4c9a49d-Belan6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca543476f-Belan9.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca59d4b72-Belan10.png"}],"video":null,"description":"

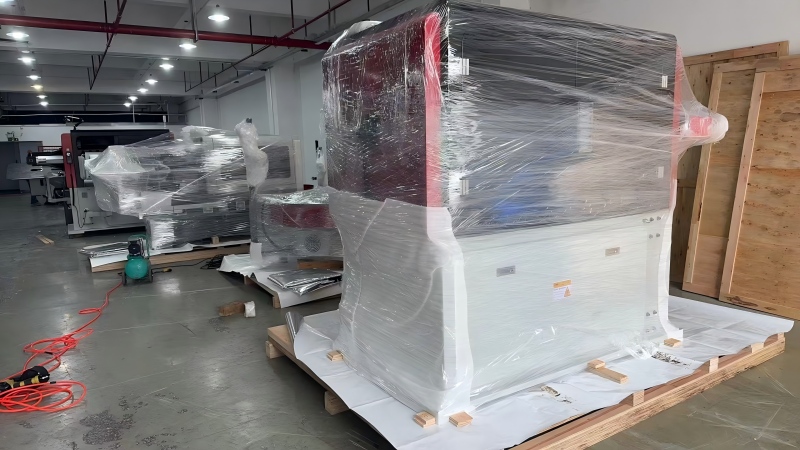

BL-3D-5800 is a<\/span> <\/span><\/b>5-axis CNC wire bending machine engineered for medium- and large-diameter wire processing. It accommodates soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm, combining an 11.2KW power system with a robust 3000KG machine frame for stable, high-speed production. Featuring a 520mm bending stroke and wire feeding speeds up to 90m\/min, it delivers outstanding forming accuracy and production efficiency for automotive components, construction hardware, industrial brackets, shelving systems, furniture accessories, and other demanding wire forming applications.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-5800 Heavy-Duty CNC Wire Bending Machine | Belan","seo_keywords":["heavy duty wire bending machine","cnc wire bending machine","wire bending machine","wire former"],"seo_description":"BL-3D-5800 heavy-duty CNC wire bending machine for medium and heavy wire applications. Designed for stable, accurate, and efficient production.","url":"bl-3d-5800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 15:44","updated_at":"2026-07-13 17:38","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a63.0\u20138.0mm \/ Hard \u03a63.0\u20136.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"520mm","title":"BENDING STROKE"},{"txt":"5 Axis","title":"NO. OF CONTROL AXIS"},{"txt":"11.2KW","title":"TOTAL POWER"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e877bce4d18-jimeng-2026-02-24-1802-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-5800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ3.0-8.0mm \/ Hard Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
11.2KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3200×1850×2100mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1600mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2100×2100×1300mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83a864080d-3D_Rotary_Head_Wire_Bending_Machine_BL-3D-5800,BL-3D-6800.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8798753331-jimeng-2026-02-24-6850-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"3D Rotary Head Wire Bending Machine BL-3D-5800","description":"BL-3D-5800 Product Brief BL-3D-5800 is a 5-axis heavy-duty CNC wire bending machine with high precision and strong power, dedicated to efficient and stable automatic forming of medium-to-heavy soft and hard wires."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a640f452-1.jpg","desc":"Automotive Wire Parts","title":"Various wire-formed parts for automotive and daily hardware applications"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a65371ad-2.jpg","desc":"Auto & Kitchen Wire Components","title":"Assorted wire-formed components for auto, motorcycle, and kitchen-bath use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a683781c-3.jpg","desc":"Furniture & Kitchen Wire Parts","title":"Heavy-gauge wire-formed parts for furniture, kitchenware, and office use"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:38"},{"id":4,"guid":"JAP7DHixzd6mJrOq2peBz","sort":13,"name":"BL-3D-6800 6-Axis Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc6846ca7-Belan11.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc6e4d9cc-Belan12.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecf253d75f-Belan13.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecf27edba8-Balan.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc798ccd1-Belan5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc73d00ff-Belan8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc7e25671-Belan6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc850f7a1-Belan9.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc8ccaf56-Belan10.png"}],"video":null,"description":"
BL-3D-6800 is a high-performance 6-axis <\/span>wire bending machine designed for manufacturers requiring greater forming flexibility and precision. Supporting soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm, it features an independent internal rotation axis for complex three-dimensional bending applications. Equipped with a 12.2KW drive system, a 520mm bending stroke, and a heavy-duty 3000KG machine frame, it delivers stable production, accurate positioning, and wire feeding speeds up to 90m\/min. The BL-3D-6800 is ideal for producing automotive parts, industrial hardware, furniture components, wire racks, and other complex wire products that demand high accuracy and production efficiency.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-6800 6-Axis CNC Wire Forming Machine | Belan","seo_keywords":["6 axis cnc wire forming machine","wire forming machine","3d wire forming machine","wire bender"],"seo_description":"BL-3D-6800 6-axis CNC wire forming machine for soft wire 3.0-8.0mm and hard wire 3.0-6.0mm. Ideal for complex wire forming applications.","url":"bl-3d-6800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 15:54","updated_at":"2026-07-13 17:38","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a63.0-8.0mm & Hard \u03a63.0-6.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axis","title":"NO. OF AXIS"},{"txt":"12.2KW","title":"TOTAL POWER"},{"txt":"3000KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87dbdf036c-BL3D6800.jpg","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-6800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ3.0-8.0mm \/ Hard Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
12.2KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3200×1850×2100mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1600mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2100×2100×1300mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83a864080d-3D_Rotary_Head_Wire_Bending_Machine_BL-3D-5800,BL-3D-6800.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87df34ddc7-BL3D6800.jpg","title":"BL-3D-6800","description":"The BL-3D-6800 is a professional heavy-duty CNC wire forming solution. It delivers stable geometry, strict tolerances, and reliable output, meeting the high standards of automotive, hardware, and heavy-duty component manufacturing."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e46ee0d2-1.jpg","desc":"Automotive Wire Parts","title":"Various wire-formed parts for automotive and daily hardware applications"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e491a3b9-2.jpg","desc":"Auto & Kitchen Wire Parts","title":"Assorted wire-formed components for auto, motorcycle, and kitchen-bath use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e4c5f799-3.jpg","desc":"Heavy-Duty Wire Parts","title":"Heavy-gauge wire-formed parts for furniture, kitchenware, and office use"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:38"},{"id":5,"guid":"25P4_53BIRZRAh0IOy2rU","sort":12,"name":"BL-3D-6250 6-Axis Small-Diameter CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed318dfc29-Belan16.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed36d4323c-Belan18 (1).png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed4c21d6c1-Belan19.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed31f31469-Belan17.png"}],"video":null,"description":"
BL-3D-6250 is a high-precision 6-axis CNC wire bending machine specifically developed for small-diameter wire processing. Designed for soft wire Φ1.6–3.5mm and hard wire Φ1.6–2.5mm, it features a compact 1200KG structure, 5.6KW total power, and a 580mm bending stroke. The advanced multi-axis control system enables complex three-dimensional bending with excellent dimensional consistency while minimizing floor space and energy consumption. In addition to manufacturing automotive seat suspension wires (foam seat support wires), the BL-3D-6250 is also ideal for the automated production of fuel tank float rods, as well as other precision small wire components requiring consistent accuracy and efficient production.<\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-6250 6-Axis CNC Wire Bending Machine | Belan","seo_keywords":["6 axis cnc wire bending machine","wire bending machine","precision wire bending machine"],"seo_description":"BL-3D-6250 6-axis CNC wire bending machine for small-diameter wire processing. Designed for precision forming of springs, clips, and industrial parts.","url":"bl-3d-6250","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:04","updated_at":"2026-07-13 17:39","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a61.6-3.5mm & Hard \u03a61.6-2.5mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axis","title":"NO. OF AXIS"},{"txt":"5.6KW","title":"TOTAL POWER"},{"txt":"1200KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e880f6d320b-jimeng-2026-02-24-6097-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Precision Small-Diameter Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-6250<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ1.6-3.5mm \/ Hard Φ1.6-2.5mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
580mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
5.6KW<\/div>\n<\/div>\n
\n
Power of Rotating Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Bending Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Lifting Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Bending’s Lifting Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1200KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
1900×1600×1700mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
200KG<\/div>\n<\/div>\n
\n
Applicable Wire Type<\/div>\n
Soft & Hard Wires (Φ1.6-3.5mm)<\/div>\n<\/div>\n
\n
Matching Machine Model<\/div>\n
BL-3D-6250<\/div>\n<\/div>\n
\n
Installation Type<\/div>\n
Standalone \/ Side-by-Side<\/div>\n<\/div>\n
\n
Core Function<\/div>\n
Automatic Wire Feeding & Tension Control<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83aa164265-3D%20Rotary%20Head%20Wire%20Bending%20Machine%20BL-3D-6250.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87f9c550ef-jimeng-2026-02-24-6504-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-6250","description":"BL-3D-6250: 6-axis high-precision CNC wire bending machine, designed for small-diameter soft\/hard wires, enabling flexible and stable high-precision forming."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac351891b0-split_1.png","desc":"Automotive","title":"Automotive seat wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac357cb223-split_2.png","desc":"Automotive","title":"Car seat wire support"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac35b3aa53-split_3.png","desc":"Automotive","title":"Seat backrest wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac3608e704-split_4.png","desc":"Automotive","title":"Seat wire positioning clip"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac36434027-split-image-1.jpg","desc":"Automotive","title":"Automotive seat wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac367d8c3b-split-image-2.jpg","desc":"Automotive","title":"Seat back wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac36d0d02a-split-image-3.jpg","desc":"Automotive","title":"Seat side wire support"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac3715e0e6-split-image-4.jpg","desc":"Automotive","title":"Seat cushion wire frame"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:39"},{"id":27,"guid":"lqwrH8cu1KtGcOU6EjzeE","sort":11,"name":"BL-3D-51400 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b2032bdc6a-51400.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87e97175-Belan29.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed883ede21-Belan28.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed88aba18f-Belan27.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed894d4cfd-Belan26.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed899d65dd-Belan24.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a2d5842-Belan23.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a9362c4-Belan22.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8ada1ac4-Belan21.png"}],"video":null,"description":"
BL-3D-51400 is a <\/span>5-axis CNC wire bending machine developed for processing large-diameter steel wire with exceptional precision and stability. Designed for soft wire Φ5.0–14.0mm and hard wire Φ5.0–10.0mm, it combines a powerful 19.4KW drive system with a rigid 4600KG machine structure to ensure stable operation under heavy workloads. Featuring a 650mm bending stroke, wire feeding speeds up to 90m\/min, and high-precision servo control, the machine is well suited for manufacturing construction hardware, industrial brackets, automotive structural components, agricultural equipment, and other heavy-duty wire products requiring reliable high-volume production.<\/span><\/o:p><\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51400 5-Axis CNC Wire Forming Machine for Large Wires","seo_keywords":["5-axis CNC wire forming machine"],"seo_description":"BL-3D-51400 5-axis CNC wire forming machine, fits \u03a65.0-14.0mm soft & \u03a65.0-10.0mm hard wires. 19.4KW, 4600kg for heavy-duty industrial production.","url":"bl-3d-51400","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:15","updated_at":"2026-07-15 14:32","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a65.0-14.0mm; Hard material \u03a65.0-10.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axes","title":"NO. OF AXIS"},{"txt":"19.4KW","title":"TOTAL POWER"},{"txt":"4600kg","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-25\/6a3cd480be01e-52100.png","title":"BL-3D-51400","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51400<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-14.0mm \/ Hard Φ5.0-10.0mm<\/div>\n<\/div>\n
\n
Processing Travel<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
19.4KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
4.4KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Corner Motor Power<\/div>\n
5.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
4600kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Wire Feeding Rack<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000Kg<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/ORuA6c0pcIo","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8839e93917-jimeng-2026-02-24-3731-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-51400","description":"BL-3D-51400 Rotary Head Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac49d716e3-split-image-1.jpg","desc":"Automotive","title":"V-shaped bent wire parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a03f0e2-split-image-2.jpg","desc":"Automotive","title":"Special-shaped wire-formed component"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a28819e-split-image-3.jpg","desc":"Automotive","title":"Red-coated wire support parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a62cd50-split-image-4.jpg","desc":"Homeware","title":"Wire handle with grip"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:32"},{"id":6,"guid":"i0bAO6JMiDeD8vqWqhnLC","sort":11,"name":"BL-3D-51200 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed86d9825f-Belan20.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87414536-Belan25.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87e97175-Belan29.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed883ede21-Belan28.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed88aba18f-Belan27.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed894d4cfd-Belan26.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed899d65dd-Belan24.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a2d5842-Belan23.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a9362c4-Belan22.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8ada1ac4-Belan21.png"}],"video":null,"description":"
BL-3D-51200 is a <\/span>5-axis CNC wire bending machine engineered for large-diameter wire processing. It supports soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, making it suitable for demanding industrial applications. Powered by a 16.0KW servo system and supported by a rigid 4500KG machine frame, it provides outstanding stability during continuous production. With a 650mm bending stroke, 90m\/min maximum wire feeding speed, and ±0.1mm feeding accuracy, the machine delivers reliable forming quality for construction hardware, heavy-duty brackets, agricultural equipment, transportation components, and other large wire products requiring consistent precision.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51200 Heavy-Duty CNC Wire Forming Machine | Belan","seo_keywords":["heavy duty wire forming machine","cnc wire forming machine","wire former"],"seo_description":"BL-3D-51200 heavy-duty CNC wire forming machine for large-diameter wire applications. Suitable for industrial and construction wire forming.","url":"bl-3d-51200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:15","updated_at":"2026-07-15 14:31","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a65.0-12.0mm & Hard \u03a65.0-8.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"16.0KW","title":"TOTAL POWER"},{"txt":"4500KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e882ff942ba-jimeng-2026-02-24-8865-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Heavy-Duty Large-Diameter Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-12.0mm \/ Hard Φ5.0-8.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
16.0KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
4500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
900KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/-Cr3LSj7ND8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8839e93917-jimeng-2026-02-24-3731-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-51200","description":"wire bending machine,From simple to complex 3D wire shapes."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac49d716e3-split-image-1.jpg","desc":"Automotive","title":"V-shaped bent wire parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a03f0e2-split-image-2.jpg","desc":"Automotive","title":"Special-shaped wire-formed component"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a28819e-split-image-3.jpg","desc":"Automotive","title":"Red-coated wire support parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a62cd50-split-image-4.jpg","desc":"Homeware","title":"Wire handle with grip"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:31"},{"id":29,"guid":"By8zpeNCWD0FYsn2joxOP","sort":10,"name":"BL-3D-51600 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b242ac79e6-51600.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-51600 is an <\/span>5-axis CNC wire bending machine engineered for processing extra-large diameter wire in demanding industrial applications. Designed for soft wire Φ8.0–16.0mm and hard wire Φ8.0–12.0mm, it features a powerful 26KW servo drive system, an 800mm bending stroke, and a rigid 5800KG machine frame for exceptional stability during continuous production. Equipped with an 11KW wire feeding motor and high-precision CNC control, it delivers outstanding forming accuracy, reliable repeatability, and long-term durability. The BL-3D-51600 is ideal for manufacturing construction hardware, heavy machinery components, power transmission parts, agricultural equipment, and other large-scale wire products requiring high-strength bending performance.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51600 Heavy Duty 5-Axis CNC Wire Forming Machine","seo_keywords":["5-axis CNC wire forming machine"],"seo_description":"BL-3D-51600 heavy duty 5-axis CNC wire forming machine, fits \u03a68.0-16mm soft & \u03a68.0-12mm hard wires. 26KW, 5800kg for extra thick wire industrial production.","url":"bl-3d-51600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:33","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a68.0-16.0mm; Hard material \u03a68.0-12.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axes","title":"NO. OF AXIS"},{"txt":"26KW","title":"TOTAL POWER"},{"txt":"5800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-25\/6a3ce243a8335-51600.png","title":"The BL-3D-51600","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51600<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ8.0-16.0mm \/ Hard Φ8.0-12.0mm<\/div>\n<\/div>\n
\n
Processing Stroke<\/div>\n
800mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
26KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
11KW<\/div>\n<\/div>\n
\n
Angle Motor Power<\/div>\n
5.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
3.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
50 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
5800kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4400×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/fdKmYbrLkV8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-51600","description":"BL-3D-51600\/61600 Rotary Head Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:33"},{"id":28,"guid":"3BePBojK9sW61FnI5oija","sort":10,"name":"BL-3D-61200 6-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b2050eb2e4-51400.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-61200 is a<\/span> 6-axis CNC wire bending machine designed for complex three-dimensional forming of medium- and large-diameter wire. Supporting soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, it integrates an additional internal rotation axis to perform more sophisticated bending operations with greater flexibility. Powered by a 17.5KW servo system and built on a robust 4500KG machine frame, it provides stable high-load production, accurate wire positioning, and excellent dimensional consistency. The BL-3D-61200 is widely used for manufacturing automotive components, industrial hardware, construction accessories, storage systems, and precision wire products requiring complex geometries.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-61200 6-Axis CNC Wire Forming Machine","seo_keywords":["6-axis CNC wire forming machine"],"seo_description":"BL-3D-61200 6-axis CNC wire forming machine, fits \u03a65.0-12mm soft & \u03a65.0-8mm hard wires. 17.5KW, 4500kg for stable precision industrial production.","url":"bl-3d-61200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:34","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a65.0-12.0mm; Hard material \u03a65.0-8.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axes","title":"NO. OF AXIS"},{"txt":"17.5KW","title":"TOTAL POWER"},{"txt":"4500kg","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8887d2bc80-wirebendingmachine61600.jpg","title":"BL-3D-61200","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-61200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-12.0mm \/ Hard Φ5.0-8.0mm<\/div>\n<\/div>\n
\n
Processing Stroke<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
17.5KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Bevel Motor Power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
50 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
4500kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/zk6a7hQah7Q","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-61600","description":"BL-3D-61600: 3D Rotary Head CNC wire bending machine for extra-large diameter wires (\u03a68.0-16.0mm soft \/ \u03a68.0-12.0mm hard), enabling heavy-duty 3D complex forming with 800mm bending stroke."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:34"},{"id":7,"guid":"-0koNjCJN6_eSBBA3yPW7","sort":10,"name":"BL-3D-61600 3D Rotary Head CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedae95a73a-Belan30.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-61600 is a<\/span> <\/span><\/b>3D rotary head CNC wire bending machine developed for complex spatial bending of extra-large diameter wire. Suitable for soft wire Φ8.0–16.0mm and hard wire Φ8.0–12.0mm, it combines an advanced rotary head structure with a powerful 24KW servo drive system and an 800mm bending stroke to deliver exceptional flexibility for demanding three-dimensional wire forming applications. Its rigid 5800KG machine frame, 11KW wire feeding motor, and high-speed CNC control ensure reliable continuous operation, making it an ideal solution for heavy machinery, automotive chassis components, construction hardware, infrastructure products, and other industrial applications requiring complex heavy-duty wire bending.<\/span><\/o:p><\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-61600 3D CNC Wire Bending Machine | Belan","seo_keywords":["3d cnc wire bending machine","wire bending machine","heavy wire bending machine"],"seo_description":"BL-3D-61600 3D CNC wire bending machine for large-diameter wire forming. Ideal for complex industrial wire components and structures.","url":"bl-3d-61600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:35","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a68.0-16.0mm & Hard \u03a68.0-12.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"24KW","title":"TOTAL POWER"},{"txt":"5800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8887d2bc80-wirebendingmachine61600.jpg","title":"Engineered for Heavy-Duty 3D Extra-Large Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-61600<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
3D Rotary Head Wire Bending Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ8.0-16.0mm \/ Hard Φ8.0-12.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
800mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
24KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
11KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
80M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
5800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
900KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/fdKmYbrLkV8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-61600","description":"BL-3D-61600: 3D Rotary Head CNC wire bending machine for extra-large diameter wires (\u03a68.0-16.0mm soft \/ \u03a68.0-12.0mm hard), enabling heavy-duty 3D complex forming with 800mm bending stroke."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:35"},{"id":13,"guid":"CZQj-rNMOMfDtggsdgM_S","sort":6,"name":"BL-3D-8600 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feef94534cd-J17.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feef9a9991c-J16.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feefa1d0aab-J11.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feefa74c270-J14.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feefac75cca-J12.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feefb2762d1-J13.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef00aa3e33-J18_(1).png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feefb811519-J15.png"}],"video":null,"description":"
BL-3D-8600 is an 8-axis flat wire rotary bending machine engineered for precision forming of flat and shaped wire components. It processes soft wire from 2.0–6.0mm and hard wire from 2.0–4.0mm, featuring a 520mm bending stroke, 11.7KW total power, and a maximum wire feeding speed of 40m\/min. The advanced 8-axis CNC control system delivers ±0.1mm feeding accuracy and ±0.1° bending accuracy, ensuring outstanding dimensional consistency for complex flat wire products. It is an ideal solution for manufacturing automotive components, furniture hardware, appliance parts, display accessories, and other precision flat wire products requiring stable, high-quality production.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-8600 8-Axis Flat Wire Bending Machine | Belan","seo_keywords":["flat wire bending machine","flat wire forming","CNC wire bending","rotary wire forming","BL-3D-8600","BELAN"],"seo_description":"BL-3D-8600 8-axis flat wire bending machine for precision forming applications. Suitable for industrial and automotive production.","url":"bl-3d-8600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 09:53","updated_at":"2026-07-13 17:41","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 2.0-6.0mm \/ Hard 2.0-4.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"11.7KW","title":"TOTAL POWER"},{"txt":"520mm","title":"BENDING STROKE"},{"txt":"2000KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97cb5cbe66-jimeng-2026-02-24-5615-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"Engineered for Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-8600<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 2.0-6.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 2.0-4.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
11.7KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
1.5KW\/1.5KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
500KG<\/div>\n<\/div>\n
\n
Weight<\/div>\n
-<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2000x1550x1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/AZ_isKrF1sU","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97cf31fbd4-jimeng-2026-02-24-5615-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"BL-3D-8600","description":"This is a high-performance 8-axis flat-plate rotary wire bending machine, specially designed for soft material 2.0-6.0mm and hard material 2.0-4.0mm wire specifications. With a total power of 11.7KW and a machine weight of 2000KG, it features a 520mm bending stroke and 40m\/min wire feeding speed, ideal for precision flat-plate and rotary wire forming applications."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac66778d34-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac669571e4-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac66cc5bc8-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac670071e7-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:41"},{"id":14,"guid":"F8ZybwGqUeVEnwWjKzBkv","sort":5,"name":"BL-3D-8800 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b1dedaa7b3-8800.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef85908cb1-J30.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef85defd41-J32.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef8638ae3e-J33.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef86940ea4-J34.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef86de318e-J35.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef876c36d6-J36.jpg"}],"video":null,"description":"
BL-3D-8800 is a high-performance 8-axis flat wire rotary bending machine designed for larger flat wire applications. Supporting soft wire 2.0–8.0mm and hard wire 2.0–6.0mm, it combines a 600mm bending stroke with a powerful 16.7KW servo system to deliver excellent forming capability and production efficiency. Featuring 40m\/min wire feeding speed, ±0.1mm feeding accuracy, and a heavy-duty 2300KG machine frame, it provides stable operation for continuous manufacturing. The BL-3D-8800 is widely used for producing automotive brackets, furniture hardware, storage systems, electrical hardware, and industrial flat wire components requiring consistent precision and reliability.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-8800 Flat Wire Bending Machine | Belan","seo_keywords":["8-axis wire former","CNC flat wire forming","industrial flat wire machine","BL-3D-8800","BELAN"],"seo_description":"BL-3D-8800 flat wire bending machine for efficient processing of medium-size flat wire components and industrial applications.","url":"bl-3d-8800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:06","updated_at":"2026-07-15 14:20","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 2.0-8.0mm \/ Hard 2.0-6.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"16.7KW","title":"TOTAL POWER"},{"txt":"600mm","title":"BENDING STROKE"},{"txt":"2300KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9844975a67-jimeng-2026-02-24-1458-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"Engineered for Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-8800<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 2.0-8.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 2.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
16.7KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
2.0KW\/2.0KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2300KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1300mm<\/div>\n<\/div>\n
\n
Core Feature<\/div>\n
Flat-Plate Rotary Wire Bending<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/Vsy5H-1DrrY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a4617de07bd2-image.png","title":"BL-3D-8800","description":"BL-3D-8800 Rotary Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6e40cb62-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6e9af2e6-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6ee3d7e6-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6f3b4f1c-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:20"},{"id":15,"guid":"eth-SRVCAOIspo3YpD1WO","sort":4,"name":"BL-3D-81000 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0129ac87d38-n2.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0129b40f5f3-n1.png"}],"video":null,"description":"
BL-3D-81000 is an industrial-grade 8-axis flat wire rotary bending machine developed for large-format flat wire components. Designed for soft wire 3.0–10.0mm and hard wire 3.0–8.0mm, it features an extended 850mm bending stroke, 20.6KW total power, and a rigid 3800KG machine frame for demanding production environments. The advanced CNC control system maintains outstanding feeding and bending accuracy while supporting continuous heavy-duty operation. It is ideal for manufacturing large automotive brackets, industrial supports, construction hardware, transportation components, and other oversized flat wire products requiring high precision and structural strength.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-81000 Heavy-Duty Flat Wire Bending Machine | Belan","seo_keywords":["wire forming machine","8-axis CNC wire former","industrial flat wire bending","BL-3D-81000"],"seo_description":"BL-3D-81000 heavy-duty flat wire bending machine for large-scale industrial forming and heavy-gauge flat wire production.","url":"bl-3d-81000","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:07","updated_at":"2026-07-13 17:42","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 3.0-10.0mm \/ Hard 3.0-8.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"20.6KW","title":"TOTAL POWER"},{"txt":"850mm","title":"BENDING STROKE"},{"txt":"3800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9887978b88-flatwirebendingmachine.jpg","title":"Engineered for Large-Format Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-81000<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 3.0-10.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 3.0-8.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
850mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
20.6KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
2.7KW\/2.7KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1300mm<\/div>\n<\/div>\n
\n
Core Feature<\/div>\n
Large-Format Flat-Plate Wire Bending<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/CvePtA_RgXY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46181626473-image.png","title":"BL-3D-81000","description":"Precision matters in complex 3D wire forming.wire bender delivers stable accuracy for industrial"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac7365719b-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac739ce501-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac73ccf23f-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac74cc6baa-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:42"},{"id":16,"guid":"8vHMXoX4Qrc0wDEvG7PMT","sort":3,"name":"BL-3D-81200 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01301ee0a75-n4.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013028b4988-n3.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01304e54af1-n10.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01302ac86d4-n5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013030c5f41-n6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013036eeaa2-n8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01303e34bbf-n8.png"}],"video":null,"description":"
BL-3D-81200 is the largest model in the flat wire rotary bending machine series, designed for extra-large and heavy-duty flat wire forming applications. Supporting soft wire 3.0–12.0mm and hard wire 3.0–10.0mm, it integrates a powerful 29KW servo system, an 850mm bending stroke, and a heavy-duty 4100KG machine structure to ensure stable production under high loads. With high-precision 8-axis CNC control and reliable multi-axis synchronization, it delivers exceptional forming accuracy for large industrial components. The BL-3D-81200 is ideal for manufacturing heavy-duty automotive parts, engineering hardware, construction systems, electrical support structures, and other demanding flat wire applications.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-81200 Heavy-Duty Flat Wire Bending Machine | Belan","seo_keywords":["flat wire bending machine","wire forming machine","heavy-duty flat wire bender","heavy industrial wire former","BL-3D-81200"],"seo_description":"BL-3D-81200 heavy-duty flat wire bending machine for demanding industrial applications requiring high forming capacity.","url":"bl-3d-81200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:08","updated_at":"2026-07-15 14:26","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 3.0-12.0mm \/ Hard 3.0-10.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"29KW","title":"TOTAL POWER"},{"txt":"850mm","title":"BENDING STROKE"},{"txt":"4100KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9895b779c7-81200--8.jpg","title":"Engineered for Extra-Large Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-81200<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 3.0-12.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 3.0-10.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
850mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
29KW<\/div>\n<\/div>\n
\n
Power of Rotary Wire Servo Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Folding\/Lifting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of In\/Out Folding Servo Motor<\/div>\n
4.5KW\/4.5KW<\/div>\n<\/div>\n
\n
Power of Pallet\/Lifting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Cutting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Pan Left\/Right Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
4100KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4500x1600x1900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
1600mm<\/div>\n<\/div>\n
\n
Feeder Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Feeder Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1500mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/CvePtA_RgXY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46184cc3d78-image.png","title":"BL-3D-81200","description":"Precision matters in complex 3D wire forming.wire bender delivers stable accuracy for industrial"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78099911-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac786591ac-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78b63cb5-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78e9d4b9-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:26"},{"id":22,"guid":"FhyFh_HlEVffRpCm2yKkZ","sort":0,"name":"BL-2T-15600 Dual-Head CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2673964da49-Center_the_device_subject_in_202606081523 (3).jpeg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2673a1557e1-Center_the_device_subject_in_202606081523 (2).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2673a72ec8b-Center_the_device_subject_in_202606081523 (1).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2673abc63b2-Center_the_device_subject_in_202606081523.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2673b0299c0-Center_the_device_subject_in_202606081523 (4).jpeg"}],"video":null,"description":"
BL-2T-15600 is a high-performance 15-axis dual-head CNC wire bending machine designed for simultaneous double-end forming of long and symmetrical wire components. It processes soft wire Φ3.0–6.0mm and hard wire Φ3.0–4.5mm with a maximum processing length of 2000mm. Featuring independent dual-head servo control, 26.9KW total power, and a heavy-duty 5000KG machine frame, it significantly improves production efficiency while maintaining exceptional bending accuracy. The BL-2T-15600 is ideal for manufacturing rear seat wire frames, automotive seat frames, seat suspension wires (foam seat support wires), double serpentine springs, automotive linkage rods, and seat support structures, as well as other complex wire components requiring synchronized multi-point bending.<\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-2T-15600 Dual-Head CNC Wire Bending Machine | Belan","seo_keywords":["BL-2T-15600","dual-head wire forming machine","Yitu servo","automatic wire feeder","long workpiece bending"],"seo_description":"BL-2T-15600 dual-head CNC wire bending machine with multi-axis control for efficient forming of complex wire components.","url":"bl-2t-15600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-08 17:03","updated_at":"2026-07-14 17:56","translated_at":null,"total_view":0,"total_sold":0,"category_id":24,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Hard \u03a63.0\u20134.5mm \/ Soft \u03a63.0\u20136.0mm","title":"Applicable Wire Diameter:"},{"txt":"15 Axis","title":"Number of Control Axes:"},{"txt":"26.9 KW","title":"Total Power:"},{"txt":"5000 KG","title":"Machine Weight:"},{"txt":"2000 mm","title":"Maximum Processing Length:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2674406606c-Center_the_device_subject_in_202606081523 (3).jpeg","title":"BL-2T-15600","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-2T-15600 Double-Head Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Hard Φ3.0-4.5mm \/ Soft Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Max Processing Length<\/div>\n
≤2000mm<\/div>\n<\/div>\n
\n
Min Center Distance (Single\/Double)<\/div>\n
80 \/ 120mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
15 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
26.9KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Clamping Translation<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Rotating Small Arm<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Rotating Large Arm<\/div>\n
2.7KW ×2 (with brake)<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn<\/div>\n
3.0KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Lifting<\/div>\n
1.0KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn Inward<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn Outward<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Cutting Tool<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Weight<\/div>\n
5000KG<\/div>\n<\/div>\n
\n
Machine Size (L×W×H)<\/div>\n
6600 × 1600 × 2200mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1000KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/yyUwlxztK4A","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46188fbddc1-image.png","title":"BL-2T-15600 Double-Head Machine","description":"Double end wire forming machine Rear seat frame bending machine 3D wire bending machine"},"diy_application":null,"diy_faq":null,"category_info":{"id":24,"guid":"3sNBfwvewnfQGGREAhvZ3","language":"en","name":"Double-Head Wire Bending Machine","label":"Double-Head Wire Bending Machine","value":24,"defer":false,"collapsed":false},"updated_at_label":"07\/14 17:56"},{"id":20,"guid":"nOuZILzLeLoDA4JfXGVHe","sort":0,"name":"BL-2D-3800 2D CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a26618f68323-3800 (1).jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a266191e7d4b-R202606081148 (3).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661b360579-202606081147 (2).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a26618a61b91-202606081147.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661ac94419-2026060811471.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661c07d714-202606081148 (1).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661d4a980b-202606081147 (4).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661c87ad09-20260081148.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661d67e28f-202606081150.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661d35933b-202606081147 (3).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2661db9db90-202606081148 (2).jpeg"}],"video":null,"description":"
BL-2D-3800 is a compact 3-axis 2D CNC wire bending machine designed for precision bending of soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm. Equipped with a 6.5KW servo drive system, a 600mm processing stroke, and wire feeding speeds up to 90m\/min, it delivers stable, high-speed production with ±0.1mm feeding accuracy and ±0.2° bending accuracy. The integrated feeding, bending, and cutting process improves productivity while maintaining excellent consistency. It is ideal for manufacturing automotive clips, furniture hardware, kitchen accessories, wire brackets, display fixtures, and a wide range of precision 2D wire components.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-2D-3800 2D CNC Wire Forming Machine | Belan","seo_keywords":["2D wire forming machine","planar wire bending machine","wire forming machine","BL-2D-3800"],"seo_description":"BL-2D-3800 2D CNC wire forming machine for 3.0-8.0mm wire. Delivers precise planar wire forming for hardware, furniture, shelving, and industrial applications.","url":"bl-2d-3800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-08 13:50","updated_at":"2026-07-14 17:51","translated_at":null,"total_view":0,"total_sold":0,"category_id":13,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a6:3.0-8.0mm; Hard material \u03a6:3.0-6.0mm","title":"Applicable Wire Specification"},{"txt":"3 Axis","title":"Number of Axes"},{"txt":"6.5KW","title":"Total Power"},{"txt":"600mm","title":"Processing Stroke"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a26679f2e153-R202606081148 (3).jpeg","title":"BL-2D-3800 2D Wire Forming Machine by Belan","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Type<\/div>\n
BL-2D-3800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft material Φ:3.0-8.0mm \/ Hard material Φ:3.0-6.0mm<\/div>\n<\/div>\n
\n
Processing stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
Number of control Axis<\/div>\n
3 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
6.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Angle Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Cutting\/Lifting Motor<\/div>\n
2.3KW<\/div>\n<\/div>\n
\n
Max Wire Feeding Speed<\/div>\n
90m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm ± 0.1mm<\/div>\n<\/div>\n
\n
Angle Folding Accuracy<\/div>\n
90° ± 0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Main Machine Weight<\/div>\n
1000kg<\/div>\n<\/div>\n
\n
Machine Size (L×W×H)<\/div>\n
1800×1300×1600mm<\/div>\n<\/div>\n
\n
Automatic Feeder - Max Load Weight<\/div>\n
500Kg<\/div>\n<\/div>\n
\n
Automatic Feeder - Tray Diameter<\/div>\n
φ1300mm<\/div>\n<\/div>\n
\n
Automatic Feeder - Motor Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Automatic Feeder - Weight<\/div>\n
450Kg<\/div>\n<\/div>\n
\n
Automatic Feeder - Size (L×W×H)<\/div>\n
2000×1550×1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Parts Brand & Origin<\/h2>\n<\/div>\n
\n
\n
Wire Feeding Servo Motor<\/div>\n
SANYO (Japan)<\/div>\n<\/div>\n
\n
Angle Folding Servo Motor<\/div>\n
SANYO (Japan)<\/div>\n<\/div>\n
\n
Cutting\/Lifting Servo Motor<\/div>\n
INOVANCE (Jiangsu, China)<\/div>\n<\/div>\n
\n
Angle Folding Reducer<\/div>\n
TAICHENG (Taiwan)<\/div>\n<\/div>\n
\n
Cutting\/Lifting Reducer<\/div>\n
TAICHENG (Taiwan)<\/div>\n<\/div>\n
\n
Bearing (Precision)<\/div>\n
NSK\/IKO (Japan)<\/div>\n<\/div>\n
\n
Bearing (Heavy-duty)<\/div>\n
FAG (Germany)<\/div>\n<\/div>\n
\n
Computer System<\/div>\n
Topcon (Guangdong, China)<\/div>\n<\/div>\n
\n
Switch of Power<\/div>\n
MEAN WELL (Taiwan)<\/div>\n<\/div>\n
\n
Inverter<\/div>\n
Huichuan (Shenzhen, China)<\/div>\n<\/div>\n
\n
Circuit Breaker<\/div>\n
CHNT (Zhejiang, China)<\/div>\n<\/div>\n
\n
AC Contactor<\/div>\n
CHNT (Zhejiang, China)<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/GWIfGkIb9ds","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46164d4d74c-image.png","title":"BL-2D-3800","description":"Belan Wire Bending Machine 2D-3800 Small Batch 5.0mm Wire Bending 2D Wire Bending Machine 3.0-8.0mm"},"diy_application":null,"diy_faq":null,"category_info":{"id":13,"guid":"_ermmc2y-OcYhYsY_5dAM","language":"en","name":"2D Wire Bending Machine","label":"2D Wire Bending Machine","value":13,"defer":false,"collapsed":false},"updated_at_label":"07\/14 17:51"}]" onmouseenter="showCategoryProducts(this)">
Mesin Pembengkok Kawat CNC

BL-2T-15600 is a high-performance 15-axis dual-head CNC wire bending machine designed for simultaneous double-end forming of long and symmetrical wire components. It processes soft wire Φ3.0–6.0mm and hard wire Φ3.0–4.5mm with a maximum processing length of 2000mm. Featuring independent dual-head servo control, 26.9KW total power, and a heavy-duty 5000KG machine frame, it significantly improves production efficiency while maintaining exceptional bending accuracy. The BL-2T-15600 is ideal for manufacturing rear seat wire frames, automotive seat frames, seat suspension wires (foam seat support wires), double serpentine springs, automotive linkage rods, and seat support structures, as well as other complex wire components requiring synchronized multi-point bending.<\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-2T-15600 Dual-Head CNC Wire Bending Machine | Belan","seo_keywords":["BL-2T-15600","dual-head wire forming machine","Yitu servo","automatic wire feeder","long workpiece bending"],"seo_description":"BL-2T-15600 dual-head CNC wire bending machine with multi-axis control for efficient forming of complex wire components.","url":"bl-2t-15600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-08 17:03","updated_at":"2026-07-14 17:56","translated_at":null,"total_view":0,"total_sold":0,"category_id":24,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Hard \u03a63.0\u20134.5mm \/ Soft \u03a63.0\u20136.0mm","title":"Applicable Wire Diameter:"},{"txt":"15 Axis","title":"Number of Control Axes:"},{"txt":"26.9 KW","title":"Total Power:"},{"txt":"5000 KG","title":"Machine Weight:"},{"txt":"2000 mm","title":"Maximum Processing Length:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2674406606c-Center_the_device_subject_in_202606081523 (3).jpeg","title":"BL-2T-15600","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-2T-15600 Double-Head Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Hard Φ3.0-4.5mm \/ Soft Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Max Processing Length<\/div>\n
≤2000mm<\/div>\n<\/div>\n
\n
Min Center Distance (Single\/Double)<\/div>\n
80 \/ 120mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
15 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
26.9KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Clamping Translation<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Rotating Small Arm<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Rotating Large Arm<\/div>\n
2.7KW ×2 (with brake)<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn<\/div>\n
3.0KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Lifting<\/div>\n
1.0KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn Inward<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Left\/Right Turn Outward<\/div>\n
1.3KW ×2<\/div>\n<\/div>\n
\n
Power of Cutting Tool<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Weight<\/div>\n
5000KG<\/div>\n<\/div>\n
\n
Machine Size (L×W×H)<\/div>\n
6600 × 1600 × 2200mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1000KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/yyUwlxztK4A","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46188fbddc1-image.png","title":"BL-2T-15600 Double-Head Machine","description":"Double end wire forming machine Rear seat frame bending machine 3D wire bending machine"},"diy_application":null,"diy_faq":null,"category_info":{"id":24,"guid":"3sNBfwvewnfQGGREAhvZ3","language":"en","name":"Double-Head Wire Bending Machine","label":"Double-Head Wire Bending Machine","value":24,"defer":false,"collapsed":false},"updated_at_label":"07\/14 17:56"}]" onmouseenter="showCategoryProducts(this)"> Mesin Pembengkokan Kawat Kepala Ganda

BL-2D-3800 is a compact 3-axis 2D CNC wire bending machine designed for precision bending of soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm. Equipped with a 6.5KW servo drive system, a 600mm processing stroke, and wire feeding speeds up to 90m\/min, it delivers stable, high-speed production with ±0.1mm feeding accuracy and ±0.2° bending accuracy. The integrated feeding, bending, and cutting process improves productivity while maintaining excellent consistency. It is ideal for manufacturing automotive clips, furniture hardware, kitchen accessories, wire brackets, display fixtures, and a wide range of precision 2D wire components.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-2D-3800 2D CNC Wire Forming Machine | Belan","seo_keywords":["2D wire forming machine","planar wire bending machine","wire forming machine","BL-2D-3800"],"seo_description":"BL-2D-3800 2D CNC wire forming machine for 3.0-8.0mm wire. Delivers precise planar wire forming for hardware, furniture, shelving, and industrial applications.","url":"bl-2d-3800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-08 13:50","updated_at":"2026-07-14 17:51","translated_at":null,"total_view":0,"total_sold":0,"category_id":13,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a6:3.0-8.0mm; Hard material \u03a6:3.0-6.0mm","title":"Applicable Wire Specification"},{"txt":"3 Axis","title":"Number of Axes"},{"txt":"6.5KW","title":"Total Power"},{"txt":"600mm","title":"Processing Stroke"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a26679f2e153-R202606081148 (3).jpeg","title":"BL-2D-3800 2D Wire Forming Machine by Belan","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Type<\/div>\n
BL-2D-3800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft material Φ:3.0-8.0mm \/ Hard material Φ:3.0-6.0mm<\/div>\n<\/div>\n
\n
Processing stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
Number of control Axis<\/div>\n
3 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
6.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Angle Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Cutting\/Lifting Motor<\/div>\n
2.3KW<\/div>\n<\/div>\n
\n
Max Wire Feeding Speed<\/div>\n
90m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm ± 0.1mm<\/div>\n<\/div>\n
\n
Angle Folding Accuracy<\/div>\n
90° ± 0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Main Machine Weight<\/div>\n
1000kg<\/div>\n<\/div>\n
\n
Machine Size (L×W×H)<\/div>\n
1800×1300×1600mm<\/div>\n<\/div>\n
\n
Automatic Feeder - Max Load Weight<\/div>\n
500Kg<\/div>\n<\/div>\n
\n
Automatic Feeder - Tray Diameter<\/div>\n
φ1300mm<\/div>\n<\/div>\n
\n
Automatic Feeder - Motor Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Automatic Feeder - Weight<\/div>\n
450Kg<\/div>\n<\/div>\n
\n
Automatic Feeder - Size (L×W×H)<\/div>\n
2000×1550×1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Parts Brand & Origin<\/h2>\n<\/div>\n
\n
\n
Wire Feeding Servo Motor<\/div>\n
SANYO (Japan)<\/div>\n<\/div>\n
\n
Angle Folding Servo Motor<\/div>\n
SANYO (Japan)<\/div>\n<\/div>\n
\n
Cutting\/Lifting Servo Motor<\/div>\n
INOVANCE (Jiangsu, China)<\/div>\n<\/div>\n
\n
Angle Folding Reducer<\/div>\n
TAICHENG (Taiwan)<\/div>\n<\/div>\n
\n
Cutting\/Lifting Reducer<\/div>\n
TAICHENG (Taiwan)<\/div>\n<\/div>\n
\n
Bearing (Precision)<\/div>\n
NSK\/IKO (Japan)<\/div>\n<\/div>\n
\n
Bearing (Heavy-duty)<\/div>\n
FAG (Germany)<\/div>\n<\/div>\n
\n
Computer System<\/div>\n
Topcon (Guangdong, China)<\/div>\n<\/div>\n
\n
Switch of Power<\/div>\n
MEAN WELL (Taiwan)<\/div>\n<\/div>\n
\n
Inverter<\/div>\n
Huichuan (Shenzhen, China)<\/div>\n<\/div>\n
\n
Circuit Breaker<\/div>\n
CHNT (Zhejiang, China)<\/div>\n<\/div>\n
\n
AC Contactor<\/div>\n
CHNT (Zhejiang, China)<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/GWIfGkIb9ds","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46164d4d74c-image.png","title":"BL-2D-3800","description":"Belan Wire Bending Machine 2D-3800 Small Batch 5.0mm Wire Bending 2D Wire Bending Machine 3.0-8.0mm"},"diy_application":null,"diy_faq":null,"category_info":{"id":13,"guid":"_ermmc2y-OcYhYsY_5dAM","language":"en","name":"2D Wire Bending Machine","label":"2D Wire Bending Machine","value":13,"defer":false,"collapsed":false},"updated_at_label":"07\/14 17:51"}]" onmouseenter="showCategoryProducts(this)"> Mesin Pembengkokan Kawat 2D

BL-3D-8600 is an 8-axis flat wire rotary bending machine engineered for precision forming of flat and shaped wire components. It processes soft wire from 2.0–6.0mm and hard wire from 2.0–4.0mm, featuring a 520mm bending stroke, 11.7KW total power, and a maximum wire feeding speed of 40m\/min. The advanced 8-axis CNC control system delivers ±0.1mm feeding accuracy and ±0.1° bending accuracy, ensuring outstanding dimensional consistency for complex flat wire products. It is an ideal solution for manufacturing automotive components, furniture hardware, appliance parts, display accessories, and other precision flat wire products requiring stable, high-quality production.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-8600 8-Axis Flat Wire Bending Machine | Belan","seo_keywords":["flat wire bending machine","flat wire forming","CNC wire bending","rotary wire forming","BL-3D-8600","BELAN"],"seo_description":"BL-3D-8600 8-axis flat wire bending machine for precision forming applications. Suitable for industrial and automotive production.","url":"bl-3d-8600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 09:53","updated_at":"2026-07-13 17:41","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 2.0-6.0mm \/ Hard 2.0-4.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"11.7KW","title":"TOTAL POWER"},{"txt":"520mm","title":"BENDING STROKE"},{"txt":"2000KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97cb5cbe66-jimeng-2026-02-24-5615-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"Engineered for Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-8600<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 2.0-6.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 2.0-4.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
11.7KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
1.5KW\/1.5KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
500KG<\/div>\n<\/div>\n
\n
Weight<\/div>\n
-<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2000x1550x1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/AZ_isKrF1sU","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97cf31fbd4-jimeng-2026-02-24-5615-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"BL-3D-8600","description":"This is a high-performance 8-axis flat-plate rotary wire bending machine, specially designed for soft material 2.0-6.0mm and hard material 2.0-4.0mm wire specifications. With a total power of 11.7KW and a machine weight of 2000KG, it features a 520mm bending stroke and 40m\/min wire feeding speed, ideal for precision flat-plate and rotary wire forming applications."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac66778d34-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac669571e4-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac66cc5bc8-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac670071e7-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:41"},{"id":14,"guid":"F8ZybwGqUeVEnwWjKzBkv","sort":5,"name":"BL-3D-8800 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b1dedaa7b3-8800.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef85908cb1-J30.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef85defd41-J32.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef8638ae3e-J33.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef86940ea4-J34.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef86de318e-J35.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fef876c36d6-J36.jpg"}],"video":null,"description":"
BL-3D-8800 is a high-performance 8-axis flat wire rotary bending machine designed for larger flat wire applications. Supporting soft wire 2.0–8.0mm and hard wire 2.0–6.0mm, it combines a 600mm bending stroke with a powerful 16.7KW servo system to deliver excellent forming capability and production efficiency. Featuring 40m\/min wire feeding speed, ±0.1mm feeding accuracy, and a heavy-duty 2300KG machine frame, it provides stable operation for continuous manufacturing. The BL-3D-8800 is widely used for producing automotive brackets, furniture hardware, storage systems, electrical hardware, and industrial flat wire components requiring consistent precision and reliability.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-8800 Flat Wire Bending Machine | Belan","seo_keywords":["8-axis wire former","CNC flat wire forming","industrial flat wire machine","BL-3D-8800","BELAN"],"seo_description":"BL-3D-8800 flat wire bending machine for efficient processing of medium-size flat wire components and industrial applications.","url":"bl-3d-8800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:06","updated_at":"2026-07-15 14:20","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 2.0-8.0mm \/ Hard 2.0-6.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"16.7KW","title":"TOTAL POWER"},{"txt":"600mm","title":"BENDING STROKE"},{"txt":"2300KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9844975a67-jimeng-2026-02-24-1458-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"Engineered for Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-8800<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 2.0-8.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 2.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
16.7KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
2.0KW\/2.0KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2300KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1300mm<\/div>\n<\/div>\n
\n
Core Feature<\/div>\n
Flat-Plate Rotary Wire Bending<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/Vsy5H-1DrrY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a4617de07bd2-image.png","title":"BL-3D-8800","description":"BL-3D-8800 Rotary Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6e40cb62-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6e9af2e6-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6ee3d7e6-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac6f3b4f1c-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:20"},{"id":15,"guid":"eth-SRVCAOIspo3YpD1WO","sort":4,"name":"BL-3D-81000 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0129ac87d38-n2.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0129b40f5f3-n1.png"}],"video":null,"description":"
BL-3D-81000 is an industrial-grade 8-axis flat wire rotary bending machine developed for large-format flat wire components. Designed for soft wire 3.0–10.0mm and hard wire 3.0–8.0mm, it features an extended 850mm bending stroke, 20.6KW total power, and a rigid 3800KG machine frame for demanding production environments. The advanced CNC control system maintains outstanding feeding and bending accuracy while supporting continuous heavy-duty operation. It is ideal for manufacturing large automotive brackets, industrial supports, construction hardware, transportation components, and other oversized flat wire products requiring high precision and structural strength.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-81000 Heavy-Duty Flat Wire Bending Machine | Belan","seo_keywords":["wire forming machine","8-axis CNC wire former","industrial flat wire bending","BL-3D-81000"],"seo_description":"BL-3D-81000 heavy-duty flat wire bending machine for large-scale industrial forming and heavy-gauge flat wire production.","url":"bl-3d-81000","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:07","updated_at":"2026-07-13 17:42","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 3.0-10.0mm \/ Hard 3.0-8.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"20.6KW","title":"TOTAL POWER"},{"txt":"850mm","title":"BENDING STROKE"},{"txt":"3800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9887978b88-flatwirebendingmachine.jpg","title":"Engineered for Large-Format Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-81000<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 3.0-10.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 3.0-8.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
850mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
20.6KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Inner\/Outer Angle Motor Power<\/div>\n
2.7KW\/2.7KW<\/div>\n<\/div>\n
\n
Power of Pallet Lifting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Left\/Right Translation Motor Power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4420x2100x1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1300mm<\/div>\n<\/div>\n
\n
Core Feature<\/div>\n
Large-Format Flat-Plate Wire Bending<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/CvePtA_RgXY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46181626473-image.png","title":"BL-3D-81000","description":"Precision matters in complex 3D wire forming.wire bender delivers stable accuracy for industrial"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac7365719b-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac739ce501-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac73ccf23f-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac74cc6baa-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:42"},{"id":16,"guid":"8vHMXoX4Qrc0wDEvG7PMT","sort":3,"name":"BL-3D-81200 8-Axis Flat Wire Rotary Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01301ee0a75-n4.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013028b4988-n3.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01304e54af1-n10.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01302ac86d4-n5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013030c5f41-n6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a013036eeaa2-n8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a01303e34bbf-n8.png"}],"video":null,"description":"
BL-3D-81200 is the largest model in the flat wire rotary bending machine series, designed for extra-large and heavy-duty flat wire forming applications. Supporting soft wire 3.0–12.0mm and hard wire 3.0–10.0mm, it integrates a powerful 29KW servo system, an 850mm bending stroke, and a heavy-duty 4100KG machine structure to ensure stable production under high loads. With high-precision 8-axis CNC control and reliable multi-axis synchronization, it delivers exceptional forming accuracy for large industrial components. The BL-3D-81200 is ideal for manufacturing heavy-duty automotive parts, engineering hardware, construction systems, electrical support structures, and other demanding flat wire applications.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-81200 Heavy-Duty Flat Wire Bending Machine | Belan","seo_keywords":["flat wire bending machine","wire forming machine","heavy-duty flat wire bender","heavy industrial wire former","BL-3D-81200"],"seo_description":"BL-3D-81200 heavy-duty flat wire bending machine for demanding industrial applications requiring high forming capacity.","url":"bl-3d-81200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:08","updated_at":"2026-07-15 14:26","translated_at":null,"total_view":0,"total_sold":0,"category_id":11,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft 3.0-12.0mm \/ Hard 3.0-10.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"8 Axis","title":"NO. OF AXIS"},{"txt":"29KW","title":"TOTAL POWER"},{"txt":"850mm","title":"BENDING STROKE"},{"txt":"4100KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9895b779c7-81200--8.jpg","title":"Engineered for Extra-Large Flat-Plate Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-81200<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Soft)<\/div>\n
Soft 3.0-12.0mm<\/div>\n<\/div>\n
\n
Applicable Wire Dia. (Hard)<\/div>\n
Hard 3.0-10.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
850mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
29KW<\/div>\n<\/div>\n
\n
Power of Rotary Wire Servo Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Folding\/Lifting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of In\/Out Folding Servo Motor<\/div>\n
4.5KW\/4.5KW<\/div>\n<\/div>\n
\n
Power of Pallet\/Lifting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Cutting Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Pan Left\/Right Servo Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Max. Wire Feeding Speed<\/div>\n
40m\/min<\/div>\n<\/div>\n
\n
Wire Feeding Accuracy<\/div>\n
300mm+\/-0.1mm<\/div>\n<\/div>\n
\n
Angle Accuracy<\/div>\n
90 degrees+\/-0.1 degree<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
4100KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4500x1600x1900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum Load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
1600mm<\/div>\n<\/div>\n
\n
Feeder Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Feeder Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
2100x2100x1500mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/CvePtA_RgXY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46184cc3d78-image.png","title":"BL-3D-81200","description":"Precision matters in complex 3D wire forming.wire bender delivers stable accuracy for industrial"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78099911-split-image-4.jpg","desc":"Hardware","title":"Rectangular wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac786591ac-split-image-1.jpg","desc":"Furniture","title":"V-shaped wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78b63cb5-split-image-2.jpg","desc":"Hardware","title":"Square wire frame with locating slots"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac78e9d4b9-split-image-3.jpg","desc":"Furniture","title":"Special-shaped wire support stand"}],"diy_faq":null,"category_info":{"id":11,"guid":"_JJZIMzhp80hBDHbvQdGs","language":"en","name":"Flat Wire Rotary Bending Machine","label":"Flat Wire Rotary Bending Machine","value":11,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:26"}]" onmouseenter="showCategoryProducts(this)"> Mesin Putar Kabel Datar

BL-3D-5600 is a compact 5-axis CNC wire bending machine designed for precision processing of soft wire Φ2.5–6.0mm and hard wire Φ2.5–4.0mm. Featuring a 600mm bending stroke, 7.8KW total power, and a maximum wire feeding speed of 90m\/min, it delivers high-accuracy bending with stable and repeatable performance. Its rigid 1800KG machine frame ensures excellent stability while occupying minimal workshop space, making it an ideal solution for manufacturing automotive wire parts, furniture hardware, industrial brackets, display racks, household products, and other precision wire components requiring consistent quality and efficient production.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-5600 5-Axis CNC Wire Bending Machine | Belan","seo_keywords":["5 axis cnc wire bending machine","wire bending machine","cnc wire forming machine","wire former"],"seo_description":"BL-3D-5600 5-axis CNC wire bending machine handles soft wire 2.5-6.0mm & hard wire 2.5-4.0mm. 7.8KW power, 1800KG. Precision rotary-head wire forming for automotive seat frames, furniture spr","url":"bl-3d-5600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 10:38","updated_at":"2026-07-15 14:26","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a62.5-6.0mm \/ Hard \u03a62.5-4.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"7.8KW","title":"TOTAL POWER"},{"txt":"1800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e82c5ef1909-DSC01901.JPG","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-5600<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ2.5-6.0mm \/ Hard Φ2.5-4.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
600mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
7.8KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3000×1900×1900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1300mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
450Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2000×1550×1250mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e836bc3c9f0-3D%20Rotary%20Head%20Wire%20Bending%20Machine%20BL-3D-5600.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e82e921573e-jimeng-2026-02-24-8980-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"3d wire bending bl-3d-5600 of The car seat skeleton is bent","description":"BL-3D-5600: 5-axis high-precision wire bending machine for efficient & stable automatic forming of soft and hard wires"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4c7acae8-Samples1.png","desc":"Automotive","title":"3.0mm Car Seat Frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4ca70280-Samples6.png","desc":"Motorcycle","title":"5.0 mm Motorcycle Dashboard Bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4cbd3017-Samples2.png","desc":"Hardware","title":"5.0 Mm Hardware Pendant"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d08c8cd-Samples4.png","desc":"Automotive","title":"5.0mm Auto Parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d2ddba5-Samples3.png","desc":"Tool","title":"5.0mm Hardware Tools Pendant"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-08\/69fdb4d5077a7-Samples5.png","desc":"Kitchen&Bath","title":"5.0mm Kitchen And Bathroom Hardware Pendant"}],"diy_faq":"8xHZZwoPTNQQsht1HzS6G,MQv5_VhiVuXtCnBGkEOuK","category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:26"},{"id":3,"guid":"Cv3-FcVKTh63R7xBD-4EW","sort":14,"name":"BL-3D-5800 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca048ae6b-Balan2.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca0db4b73-Balan4.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca116dfba-Balan3.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca1ad96b8-Balan1.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca3ec0917-Balan.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca47144ed-Belan5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca5f7df45-Belan8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca4c9a49d-Belan6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca543476f-Belan9.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feca59d4b72-Belan10.png"}],"video":null,"description":"
BL-3D-5800 is a<\/span> <\/span><\/b>5-axis CNC wire bending machine engineered for medium- and large-diameter wire processing. It accommodates soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm, combining an 11.2KW power system with a robust 3000KG machine frame for stable, high-speed production. Featuring a 520mm bending stroke and wire feeding speeds up to 90m\/min, it delivers outstanding forming accuracy and production efficiency for automotive components, construction hardware, industrial brackets, shelving systems, furniture accessories, and other demanding wire forming applications.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-5800 Heavy-Duty CNC Wire Bending Machine | Belan","seo_keywords":["heavy duty wire bending machine","cnc wire bending machine","wire bending machine","wire former"],"seo_description":"BL-3D-5800 heavy-duty CNC wire bending machine for medium and heavy wire applications. Designed for stable, accurate, and efficient production.","url":"bl-3d-5800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 15:44","updated_at":"2026-07-13 17:38","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a63.0\u20138.0mm \/ Hard \u03a63.0\u20136.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"520mm","title":"BENDING STROKE"},{"txt":"5 Axis","title":"NO. OF CONTROL AXIS"},{"txt":"11.2KW","title":"TOTAL POWER"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e877bce4d18-jimeng-2026-02-24-1802-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-5800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ3.0-8.0mm \/ Hard Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
11.2KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3200×1850×2100mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1600mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2100×2100×1300mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83a864080d-3D_Rotary_Head_Wire_Bending_Machine_BL-3D-5800,BL-3D-6800.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8798753331-jimeng-2026-02-24-6850-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"3D Rotary Head Wire Bending Machine BL-3D-5800","description":"BL-3D-5800 Product Brief BL-3D-5800 is a 5-axis heavy-duty CNC wire bending machine with high precision and strong power, dedicated to efficient and stable automatic forming of medium-to-heavy soft and hard wires."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a640f452-1.jpg","desc":"Automotive Wire Parts","title":"Various wire-formed parts for automotive and daily hardware applications"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a65371ad-2.jpg","desc":"Auto & Kitchen Wire Components","title":"Assorted wire-formed components for auto, motorcycle, and kitchen-bath use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87a683781c-3.jpg","desc":"Furniture & Kitchen Wire Parts","title":"Heavy-gauge wire-formed parts for furniture, kitchenware, and office use"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:38"},{"id":4,"guid":"JAP7DHixzd6mJrOq2peBz","sort":13,"name":"BL-3D-6800 6-Axis Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc6846ca7-Belan11.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc6e4d9cc-Belan12.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecf253d75f-Belan13.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecf27edba8-Balan.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc798ccd1-Belan5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc73d00ff-Belan8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc7e25671-Belan6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc850f7a1-Belan9.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fecc8ccaf56-Belan10.png"}],"video":null,"description":"
BL-3D-6800 is a high-performance 6-axis <\/span>wire bending machine designed for manufacturers requiring greater forming flexibility and precision. Supporting soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm, it features an independent internal rotation axis for complex three-dimensional bending applications. Equipped with a 12.2KW drive system, a 520mm bending stroke, and a heavy-duty 3000KG machine frame, it delivers stable production, accurate positioning, and wire feeding speeds up to 90m\/min. The BL-3D-6800 is ideal for producing automotive parts, industrial hardware, furniture components, wire racks, and other complex wire products that demand high accuracy and production efficiency.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-6800 6-Axis CNC Wire Forming Machine | Belan","seo_keywords":["6 axis cnc wire forming machine","wire forming machine","3d wire forming machine","wire bender"],"seo_description":"BL-3D-6800 6-axis CNC wire forming machine for soft wire 3.0-8.0mm and hard wire 3.0-6.0mm. Ideal for complex wire forming applications.","url":"bl-3d-6800","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 15:54","updated_at":"2026-07-13 17:38","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a63.0-8.0mm & Hard \u03a63.0-6.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axis","title":"NO. OF AXIS"},{"txt":"12.2KW","title":"TOTAL POWER"},{"txt":"3000KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87dbdf036c-BL3D6800.jpg","title":"Engineered for Industrial Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-6800<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ3.0-8.0mm \/ Hard Φ3.0-6.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
520mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
12.2KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3200×1850×2100mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1600mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
800KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2100×2100×1300mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83a864080d-3D_Rotary_Head_Wire_Bending_Machine_BL-3D-5800,BL-3D-6800.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87df34ddc7-BL3D6800.jpg","title":"BL-3D-6800","description":"The BL-3D-6800 is a professional heavy-duty CNC wire forming solution. It delivers stable geometry, strict tolerances, and reliable output, meeting the high standards of automotive, hardware, and heavy-duty component manufacturing."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e46ee0d2-1.jpg","desc":"Automotive Wire Parts","title":"Various wire-formed parts for automotive and daily hardware applications"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e491a3b9-2.jpg","desc":"Auto & Kitchen Wire Parts","title":"Assorted wire-formed components for auto, motorcycle, and kitchen-bath use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87e4c5f799-3.jpg","desc":"Heavy-Duty Wire Parts","title":"Heavy-gauge wire-formed parts for furniture, kitchenware, and office use"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:38"},{"id":5,"guid":"25P4_53BIRZRAh0IOy2rU","sort":12,"name":"BL-3D-6250 6-Axis Small-Diameter CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed318dfc29-Belan16.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed36d4323c-Belan18 (1).png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed4c21d6c1-Belan19.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed31f31469-Belan17.png"}],"video":null,"description":"
BL-3D-6250 is a high-precision 6-axis CNC wire bending machine specifically developed for small-diameter wire processing. Designed for soft wire Φ1.6–3.5mm and hard wire Φ1.6–2.5mm, it features a compact 1200KG structure, 5.6KW total power, and a 580mm bending stroke. The advanced multi-axis control system enables complex three-dimensional bending with excellent dimensional consistency while minimizing floor space and energy consumption. In addition to manufacturing automotive seat suspension wires (foam seat support wires), the BL-3D-6250 is also ideal for the automated production of fuel tank float rods, as well as other precision small wire components requiring consistent accuracy and efficient production.<\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-6250 6-Axis CNC Wire Bending Machine | Belan","seo_keywords":["6 axis cnc wire bending machine","wire bending machine","precision wire bending machine"],"seo_description":"BL-3D-6250 6-axis CNC wire bending machine for small-diameter wire processing. Designed for precision forming of springs, clips, and industrial parts.","url":"bl-3d-6250","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:04","updated_at":"2026-07-13 17:39","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a61.6-3.5mm & Hard \u03a61.6-2.5mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axis","title":"NO. OF AXIS"},{"txt":"5.6KW","title":"TOTAL POWER"},{"txt":"1200KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e880f6d320b-jimeng-2026-02-24-6097-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Precision Small-Diameter Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-6250<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ1.6-3.5mm \/ Hard Φ1.6-2.5mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
580mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
5.6KW<\/div>\n<\/div>\n
\n
Power of Rotating Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Power of Bending Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Lifting Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Bending’s Lifting Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1200KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
1900×1600×1700mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
200KG<\/div>\n<\/div>\n
\n
Applicable Wire Type<\/div>\n
Soft & Hard Wires (Φ1.6-3.5mm)<\/div>\n<\/div>\n
\n
Matching Machine Model<\/div>\n
BL-3D-6250<\/div>\n<\/div>\n
\n
Installation Type<\/div>\n
Standalone \/ Side-by-Side<\/div>\n<\/div>\n
\n
Core Function<\/div>\n
Automatic Wire Feeding & Tension Control<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83aa164265-3D%20Rotary%20Head%20Wire%20Bending%20Machine%20BL-3D-6250.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e87f9c550ef-jimeng-2026-02-24-6504-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-6250","description":"BL-3D-6250: 6-axis high-precision CNC wire bending machine, designed for small-diameter soft\/hard wires, enabling flexible and stable high-precision forming."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac351891b0-split_1.png","desc":"Automotive","title":"Automotive seat wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac357cb223-split_2.png","desc":"Automotive","title":"Car seat wire support"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac35b3aa53-split_3.png","desc":"Automotive","title":"Seat backrest wire bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac3608e704-split_4.png","desc":"Automotive","title":"Seat wire positioning clip"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac36434027-split-image-1.jpg","desc":"Automotive","title":"Automotive seat wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac367d8c3b-split-image-2.jpg","desc":"Automotive","title":"Seat back wire frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac36d0d02a-split-image-3.jpg","desc":"Automotive","title":"Seat side wire support"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac3715e0e6-split-image-4.jpg","desc":"Automotive","title":"Seat cushion wire frame"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/13 17:39"},{"id":27,"guid":"lqwrH8cu1KtGcOU6EjzeE","sort":11,"name":"BL-3D-51400 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b2032bdc6a-51400.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87e97175-Belan29.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed883ede21-Belan28.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed88aba18f-Belan27.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed894d4cfd-Belan26.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed899d65dd-Belan24.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a2d5842-Belan23.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a9362c4-Belan22.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8ada1ac4-Belan21.png"}],"video":null,"description":"
BL-3D-51400 is a <\/span>5-axis CNC wire bending machine developed for processing large-diameter steel wire with exceptional precision and stability. Designed for soft wire Φ5.0–14.0mm and hard wire Φ5.0–10.0mm, it combines a powerful 19.4KW drive system with a rigid 4600KG machine structure to ensure stable operation under heavy workloads. Featuring a 650mm bending stroke, wire feeding speeds up to 90m\/min, and high-precision servo control, the machine is well suited for manufacturing construction hardware, industrial brackets, automotive structural components, agricultural equipment, and other heavy-duty wire products requiring reliable high-volume production.<\/span><\/o:p><\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51400 5-Axis CNC Wire Forming Machine for Large Wires","seo_keywords":["5-axis CNC wire forming machine"],"seo_description":"BL-3D-51400 5-axis CNC wire forming machine, fits \u03a65.0-14.0mm soft & \u03a65.0-10.0mm hard wires. 19.4KW, 4600kg for heavy-duty industrial production.","url":"bl-3d-51400","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:15","updated_at":"2026-07-15 14:32","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a65.0-14.0mm; Hard material \u03a65.0-10.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axes","title":"NO. OF AXIS"},{"txt":"19.4KW","title":"TOTAL POWER"},{"txt":"4600kg","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-25\/6a3cd480be01e-52100.png","title":"BL-3D-51400","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51400<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-14.0mm \/ Hard Φ5.0-10.0mm<\/div>\n<\/div>\n
\n
Processing Travel<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
19.4KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
4.4KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Corner Motor Power<\/div>\n
5.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
4600kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Wire Feeding Rack<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000Kg<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/ORuA6c0pcIo","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8839e93917-jimeng-2026-02-24-3731-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-51400","description":"BL-3D-51400 Rotary Head Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac49d716e3-split-image-1.jpg","desc":"Automotive","title":"V-shaped bent wire parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a03f0e2-split-image-2.jpg","desc":"Automotive","title":"Special-shaped wire-formed component"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a28819e-split-image-3.jpg","desc":"Automotive","title":"Red-coated wire support parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a62cd50-split-image-4.jpg","desc":"Homeware","title":"Wire handle with grip"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:32"},{"id":6,"guid":"i0bAO6JMiDeD8vqWqhnLC","sort":11,"name":"BL-3D-51200 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed86d9825f-Belan20.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87414536-Belan25.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed87e97175-Belan29.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed883ede21-Belan28.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed88aba18f-Belan27.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed894d4cfd-Belan26.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed899d65dd-Belan24.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a2d5842-Belan23.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8a9362c4-Belan22.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fed8ada1ac4-Belan21.png"}],"video":null,"description":"
BL-3D-51200 is a <\/span>5-axis CNC wire bending machine engineered for large-diameter wire processing. It supports soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, making it suitable for demanding industrial applications. Powered by a 16.0KW servo system and supported by a rigid 4500KG machine frame, it provides outstanding stability during continuous production. With a 650mm bending stroke, 90m\/min maximum wire feeding speed, and ±0.1mm feeding accuracy, the machine delivers reliable forming quality for construction hardware, heavy-duty brackets, agricultural equipment, transportation components, and other large wire products requiring consistent precision.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51200 Heavy-Duty CNC Wire Forming Machine | Belan","seo_keywords":["heavy duty wire forming machine","cnc wire forming machine","wire former"],"seo_description":"BL-3D-51200 heavy-duty CNC wire forming machine for large-diameter wire applications. Suitable for industrial and construction wire forming.","url":"bl-3d-51200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:15","updated_at":"2026-07-15 14:31","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a65.0-12.0mm & Hard \u03a65.0-8.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"16.0KW","title":"TOTAL POWER"},{"txt":"4500KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e882ff942ba-jimeng-2026-02-24-8865-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"Engineered for Heavy-Duty Large-Diameter Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-12.0mm \/ Hard Φ5.0-8.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
16.0KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
90M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
4500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
900KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/-Cr3LSj7ND8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8839e93917-jimeng-2026-02-24-3731-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u6574\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6240\u6709\u73af\u5883\u5e72\u6270\u5143\u7d20\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45....png","title":"BL-3D-51200","description":"wire bending machine,From simple to complex 3D wire shapes."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac49d716e3-split-image-1.jpg","desc":"Automotive","title":"V-shaped bent wire parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a03f0e2-split-image-2.jpg","desc":"Automotive","title":"Special-shaped wire-formed component"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a28819e-split-image-3.jpg","desc":"Automotive","title":"Red-coated wire support parts"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac4a62cd50-split-image-4.jpg","desc":"Homeware","title":"Wire handle with grip"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:31"},{"id":29,"guid":"By8zpeNCWD0FYsn2joxOP","sort":10,"name":"BL-3D-51600 5-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b242ac79e6-51600.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-51600 is an <\/span>5-axis CNC wire bending machine engineered for processing extra-large diameter wire in demanding industrial applications. Designed for soft wire Φ8.0–16.0mm and hard wire Φ8.0–12.0mm, it features a powerful 26KW servo drive system, an 800mm bending stroke, and a rigid 5800KG machine frame for exceptional stability during continuous production. Equipped with an 11KW wire feeding motor and high-precision CNC control, it delivers outstanding forming accuracy, reliable repeatability, and long-term durability. The BL-3D-51600 is ideal for manufacturing construction hardware, heavy machinery components, power transmission parts, agricultural equipment, and other large-scale wire products requiring high-strength bending performance.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-51600 Heavy Duty 5-Axis CNC Wire Forming Machine","seo_keywords":["5-axis CNC wire forming machine"],"seo_description":"BL-3D-51600 heavy duty 5-axis CNC wire forming machine, fits \u03a68.0-16mm soft & \u03a68.0-12mm hard wires. 26KW, 5800kg for extra thick wire industrial production.","url":"bl-3d-51600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:33","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a68.0-16.0mm; Hard material \u03a68.0-12.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axes","title":"NO. OF AXIS"},{"txt":"26KW","title":"TOTAL POWER"},{"txt":"5800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-25\/6a3ce243a8335-51600.png","title":"The BL-3D-51600","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-51600<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ8.0-16.0mm \/ Hard Φ8.0-12.0mm<\/div>\n<\/div>\n
\n
Processing Stroke<\/div>\n
800mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
26KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
11KW<\/div>\n<\/div>\n
\n
Angle Motor Power<\/div>\n
5.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
3.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
50 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
5800kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
4400×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/fdKmYbrLkV8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-51600","description":"BL-3D-51600\/61600 Rotary Head Wire Bending Machine Function Introduction"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:33"},{"id":28,"guid":"3BePBojK9sW61FnI5oija","sort":10,"name":"BL-3D-61200 6-Axis CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b2050eb2e4-51400.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-61200 is a<\/span> 6-axis CNC wire bending machine designed for complex three-dimensional forming of medium- and large-diameter wire. Supporting soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, it integrates an additional internal rotation axis to perform more sophisticated bending operations with greater flexibility. Powered by a 17.5KW servo system and built on a robust 4500KG machine frame, it provides stable high-load production, accurate wire positioning, and excellent dimensional consistency. The BL-3D-61200 is widely used for manufacturing automotive components, industrial hardware, construction accessories, storage systems, and precision wire products requiring complex geometries.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-61200 6-Axis CNC Wire Forming Machine","seo_keywords":["6-axis CNC wire forming machine"],"seo_description":"BL-3D-61200 6-axis CNC wire forming machine, fits \u03a65.0-12mm soft & \u03a65.0-8mm hard wires. 17.5KW, 4500kg for stable precision industrial production.","url":"bl-3d-61200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:34","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft material \u03a65.0-12.0mm; Hard material \u03a65.0-8.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"6 Axes","title":"NO. OF AXIS"},{"txt":"17.5KW","title":"TOTAL POWER"},{"txt":"4500kg","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8887d2bc80-wirebendingmachine61600.jpg","title":"BL-3D-61200","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-61200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ5.0-12.0mm \/ Hard Φ5.0-8.0mm<\/div>\n<\/div>\n
\n
Processing Stroke<\/div>\n
650mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
6 Axes<\/div>\n<\/div>\n
\n
Total power<\/div>\n
17.5KW<\/div>\n<\/div>\n
\n
Power of Swing Arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Bevel Motor Power<\/div>\n
2.0KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
50 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Bending accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Working Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Host Weight<\/div>\n
4500kg<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Disk diameter<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Motor Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1600Kg<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1800mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/zk6a7hQah7Q","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-61600","description":"BL-3D-61600: 3D Rotary Head CNC wire bending machine for extra-large diameter wires (\u03a68.0-16.0mm soft \/ \u03a68.0-12.0mm hard), enabling heavy-duty 3D complex forming with 800mm bending stroke."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:34"},{"id":7,"guid":"-0koNjCJN6_eSBBA3yPW7","sort":10,"name":"BL-3D-61600 3D Rotary Head CNC Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedae95a73a-Belan30.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaedac33f-Belan31.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf5604a4-Belan32.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedaf8e2eeb-Belan33.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedafe7b00c-Belan34.png"}],"video":null,"description":"
BL-3D-61600 is a<\/span> <\/span><\/b>3D rotary head CNC wire bending machine developed for complex spatial bending of extra-large diameter wire. Suitable for soft wire Φ8.0–16.0mm and hard wire Φ8.0–12.0mm, it combines an advanced rotary head structure with a powerful 24KW servo drive system and an 800mm bending stroke to deliver exceptional flexibility for demanding three-dimensional wire forming applications. Its rigid 5800KG machine frame, 11KW wire feeding motor, and high-speed CNC control ensure reliable continuous operation, making it an ideal solution for heavy machinery, automotive chassis components, construction hardware, infrastructure products, and other industrial applications requiring complex heavy-duty wire bending.<\/span><\/o:p><\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-61600 3D CNC Wire Bending Machine | Belan","seo_keywords":["3d cnc wire bending machine","wire bending machine","heavy wire bending machine"],"seo_description":"BL-3D-61600 3D CNC wire bending machine for large-diameter wire forming. Ideal for complex industrial wire components and structures.","url":"bl-3d-61600","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:37","updated_at":"2026-07-15 14:35","translated_at":null,"total_view":0,"total_sold":0,"category_id":10,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a68.0-16.0mm & Hard \u03a68.0-12.0mm","title":"APPLICABLE WIRE DIA."},{"txt":"5 Axis","title":"NO. OF AXIS"},{"txt":"24KW","title":"TOTAL POWER"},{"txt":"5800KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e8887d2bc80-wirebendingmachine61600.jpg","title":"Engineered for Heavy-Duty 3D Extra-Large Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-61600<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
3D Rotary Head Wire Bending Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ8.0-16.0mm \/ Hard Φ8.0-12.0mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
800mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
5 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
24KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
5.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
11KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
80M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
5800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3800×2200×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ2000mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
900KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2400×1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/fdKmYbrLkV8","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e888aa4109b-wirebendingmachine61600.jpg","title":"BL-3D-61600","description":"BL-3D-61600: 3D Rotary Head CNC wire bending machine for extra-large diameter wires (\u03a68.0-16.0mm soft \/ \u03a68.0-12.0mm hard), enabling heavy-duty 3D complex forming with 800mm bending stroke."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887df33353-61600 Sample Picture.jpg","desc":"Automotive Manufacturing","title":"Red-coated wire-formed part for automotive\/industrial use"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e887e10f45d-1731899764992.png","desc":"General Precision Hardware","title":"Assorted custom wire-formed components"}],"diy_faq":null,"category_info":{"id":10,"guid":"ZPsAc543TQFvuDS-YbKEj","language":"en","name":"Rotary-Head CNC Wire Bending Machine","label":"Rotary-Head CNC Wire Bending Machine","value":10,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:35"}]" onmouseenter="showCategoryProducts(this)"> Mesin Pembengkokan Kawat CNC Kepala Putar

BL-3D-10500 is a high-performance 10-axis CNC enameled wire bending machine designed for precision processing of enameled copper wire from Φ1.0–5.0mm. Equipped with a 10.65KW full-servo drive system, integrated wire stripping function, and wire feeding speeds up to 50m\/min, it delivers exceptional forming accuracy and production stability for complex wire components. Multiple servo-controlled bending, rotating, feeding, and peeling axes enable fully automated production while maintaining excellent dimensional consistency. The BL-3D-10500 is widely used in the manufacturing of electric motors, transformers, inductors, solenoid coils, automotive electrical components, and other high-precision enameled wire products.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-10500 CNC Enameled Wire Bending Machine | Belan","seo_keywords":["BL-3D-10500","10-axis wire forming machine","copper wire bending","precision wire forming"],"seo_description":"BL-3D-10500 CNC enameled wire bending machine for copper wire forming. Ideal for motors, transformers, and electrical components.","url":"bl-3d-10500","sku":null,"sku_property":[[]],"status_on_sale":false,"created_at":"2026-04-23 09:33","updated_at":"2026-07-15 14:35","translated_at":null,"total_view":0,"total_sold":0,"category_id":7,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Enamelled copper \u03a61.0mm \u2013 \u03a65.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"10 axes","title":"NO. OF AXIS"},{"txt":"10.65 kW (servo total power)","title":"TOTAL POWER"},{"txt":"2280 kg","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a26727d4f98c-10500.jpeg","title":"BL-3D-10500","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-10500<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Enamelled Copper Φ1.0-5.0mm<\/div>\n<\/div>\n
\n
Number of control Axis<\/div>\n
10 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
10.65KW<\/div>\n<\/div>\n
\n
1 axis arm<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
2 axis arm<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
3 axis arm<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
4 axis arm<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
5 axis left and right hand<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
6 axis curl<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
7 axis feed<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
8 axis turntable<\/div>\n
2.9KW (with brake)<\/div>\n<\/div>\n
\n
9 axis bending core<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
10 axis peeling machine<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
Maximum wire feeding speed<\/div>\n
50 m\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm ± 0.1mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V \/ 50Hz \/ 3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2280KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
2500 × 1700 × 1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load weight<\/div>\n
200KG<\/div>\n<\/div>\n
\n
Feeder Size (L*W*H)<\/div>\n
924 × 602 × 1482mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83b198ed3d-Enameled%20Wire%20Bending%20Machine%20BL-3D-10300,BL-3D-10500.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-08\/6a2672e51bafc-10500-3.png","title":"BL-3D-10500","description":"This is a high-precision 10-axis CNC enameled wire bending machine, specially designed for soft material \u03a61.0-4.0mm and hard material \u03a61.0-2.5mm wire specifications. With a total power of 9.75KW and a machine weight of 2000KG, it enables stable, high-precision enameled wire forming, ideal for small-to-medium batch and precision industrial production scenarios."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9783fd0276-jimeng-2026-02-24-1732-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....jpg","desc":"Automotive","title":"Copper busbar connectors"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e978413c7a9-jimeng-2026-02-24-2710-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....png","desc":"Automotive","title":"Multi-layer copper busbars"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97844e3cc2-jimeng-2026-02-24-4686-\u4fdd\u7559\u94dc\u7ebf\u5708\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7ebf\u5708....png","desc":"Automotive","title":"Hairpin stator winding"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97849051e6-jimeng-2026-02-24-6541-\u4fdd\u7559\u4e24\u4e2a\u7535\u673a\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7535....png","desc":"Automotive","title":"Motor stator & rotor assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9784c57509-jimeng-2026-02-24-8264-\u4fdd\u7559\u7535\u673a\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7535\u673a\u7684....png","desc":"Automotive","title":"EV motor rotor assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97853abd7d-jimeng-2026-02-24-8908-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....png","desc":"Automotive","title":"Integrated copper busbars"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e978565eac9-jimeng-2026-02-24-9663-\u4fdd\u7559\u7535\u673a\u7ed5\u7ec4\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7ed5....png","desc":"Automotive","title":"Motor winding connection assembly"}],"diy_faq":null,"category_info":{"id":7,"guid":"_oWIpuUtJABY_h8UoSe4k","language":"en","name":"Enameled Copper Wire Bending Equipment","label":"Enameled Copper Wire Bending Equipment","value":7,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:35"},{"id":12,"guid":"kW0O3FEnQWQHv3L9CKK3W","sort":7,"name":"BL-3D-10300 10-Axis CNC Enameled Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee99e0664f-J9.png","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69feeb5e8daa6-J10.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9ad693de-J3.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9a253144-J1.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9b53a090-J4.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9c152d9c-J5.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9c8d257d-J6.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9cfd1ed4-J7.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9db0c745-J8.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fee9a7ea34d-J2.png"}],"video":null,"description":"
BL-3D-10300 is a 10-axis CNC enameled wire bending machine developed for high-speed precision forming of enameled copper wire and fine metal wire components. Supporting wire diameters from Φ1.0–4.0mm (soft) and Φ1.0–2.5mm (hard), it features a 9.75KW servo drive system, wire feeding speeds up to 80m\/min, and a rigid 2000KG machine frame for stable continuous production. The integrated multi-axis control system combines wire feeding, bending, rotation, and stripping operations into one automated process, making it an ideal solution for manufacturing motor coils, transformers, inductors, relays, electronic components, and other precision enameled wire products.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-10300 CNC Copper Wire Bending Machine | Belan","seo_keywords":["inductor wire bending","copper coil forming","electrical wire bending machine","BL-3D-10300","BELAN"],"seo_description":"BL-3D-10300 CNC copper wire bending machine for precision forming of motor windings, transformer coils, and inductors.","url":"bl-3d-10300","sku":null,"sku_property":[[]],"status_on_sale":false,"created_at":"2026-04-23 09:33","updated_at":"2026-06-30 09:45","translated_at":null,"total_view":0,"total_sold":0,"category_id":7,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Soft \u03a61.0-4.0mm \/ Hard \u03a61.0-2.5mm","title":"APPLICABLE WIRE DIA"},{"txt":"10 Axis","title":"NO. OF AXIS"},{"txt":"9.75KW","title":"TOTAL POWER"},{"txt":"2000KG","title":"WEIGHT OF MACHINE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9781b1950b-jimeng-2026-02-24-1198-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\u548c\u539f\u6709\u8272\u8c03\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u3001\u73bb\u7483\u53cd\u5149\u548c\u65e0\u5173\u6587\u5b57\uff0c\u66ff\u6362\u4e3a....png","title":"Engineered for Enameled Wire Excellence","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-10300<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Soft Φ1.0-4.0mm \/ Hard Φ1.0-2.5mm<\/div>\n<\/div>\n
\n
Number of control Axis<\/div>\n
10 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
9.75KW<\/div>\n<\/div>\n
\n
1 axis arm<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
2 axis arm<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
3 axis arm<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
4 axis arm<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
5 axis left and right hand<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
6 axis curl<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
7 axis feed<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
8 axis turntable<\/div>\n
3.0KW<\/div>\n<\/div>\n
\n
9 axis bending core<\/div>\n
0.4KW<\/div>\n<\/div>\n
\n
10 axis peeling machine<\/div>\n
0.75KW<\/div>\n<\/div>\n
\n
Maximum wire feeding speed<\/div>\n
80M\/min<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
300mm±0.1mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
2000KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
3500×1800×1600mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load weight<\/div>\n
100KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83b198ed3d-Enameled%20Wire%20Bending%20Machine%20BL-3D-10300,BL-3D-10500.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e979a0cfc2b-3s-1030.jpg","title":"BL-3D-10300","description":"This is a high-precision 10-axis CNC enameled wire bending machine, specially designed for soft material \u03a61.0-4.0mm and hard material \u03a61.0-2.5mm wire specifications. With a total power of 9.75KW and a machine weight of 2000KG, it enables stable, high-precision enameled wire forming, ideal for small-to-medium batch and precision industrial production scenarios."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9783fd0276-jimeng-2026-02-24-1732-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....jpg","desc":"Automotive","title":"Copper busbar connectors"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e978413c7a9-jimeng-2026-02-24-2710-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....png","desc":"Automotive","title":"Multi-layer copper busbars"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97844e3cc2-jimeng-2026-02-24-4686-\u4fdd\u7559\u94dc\u7ebf\u5708\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7ebf\u5708....png","desc":"Automotive","title":"Hairpin stator winding"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97849051e6-jimeng-2026-02-24-6541-\u4fdd\u7559\u4e24\u4e2a\u7535\u673a\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7535....png","desc":"Automotive","title":"Motor stator & rotor assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9784c57509-jimeng-2026-02-24-8264-\u4fdd\u7559\u7535\u673a\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7535\u673a\u7684....png","desc":"Automotive","title":"EV motor rotor assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e97853abd7d-jimeng-2026-02-24-8908-\u4fdd\u7559\u94dc\u6392\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\u548c\u4eba\u7269\u624b\u90e8\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c....png","desc":"Automotive","title":"Integrated copper busbars"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e978565eac9-jimeng-2026-02-24-9663-\u4fdd\u7559\u7535\u673a\u7ed5\u7ec4\u90e8\u4ef6\u548c\u539f\u6709\u91d1\u5c5e\u8272\u8c03\uff0c\u79fb\u9664\u80cc\u666f\u4e2d\u7684\u6240\u6709\u5e72\u6270\u5143\u7d20\uff0c\u4f7f\u7528\u7eaf\u767d\u8272\u80cc\u666f\uff0c\u589e\u5f3a\u7ed5....png","desc":"Automotive","title":"Motor winding connection assembly"}],"diy_faq":null,"category_info":{"id":7,"guid":"_oWIpuUtJABY_h8UoSe4k","language":"en","name":"Enameled Copper Wire Bending Equipment","label":"Enameled Copper Wire Bending Equipment","value":7,"defer":false,"collapsed":false},"updated_at_label":"06\/30 09:45"}]" onmouseenter="showCategoryProducts(this)">
Peralatan Pembengkokan Kawat Tembaga Berlapis Enamel

The BL-WG-2030S is a fully automatic automotive wire mesh forming machine developed for high-efficiency production of automotive seat frame mesh and welded wire assemblies. Designed for Φ2.0mm W-shaped steel wire and Φ3.0mm plastic-coated steel wire, it integrates automatic wire feeding, mesh forming, cutting, and finished product collection into one continuous production process. Featuring 28–34 servo-controlled axes, 30KW total power, and a robust 6000KG machine structure, it delivers outstanding forming accuracy, production efficiency, and long-term operational stability. The BL-WG-2030S is an ideal solution for manufacturing automotive seat frame mesh, welded wire structures, and other precision wire mesh components.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-WG-2030S Seat Frame Wire Forming Machine | Belan","seo_keywords":["auto parts wire forming","car seat wire former","auto wire mesh bender","seat frame production line","BL-WG-2030S"],"seo_description":"BL-WG-2030S wire forming machine for automotive seat frame production. Designed for efficient and accurate wire processing.","url":"bl-wg-2030s","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:44","updated_at":"2026-07-15 14:39","translated_at":null,"total_view":0,"total_sold":0,"category_id":27,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"W-shaped steel wire 2.0mm \/ Plastic wrapped steel wire 3.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"28-34 Axis","title":"NO. OF AXIS"},{"txt":"30KW","title":"TOTAL POWER"},{"txt":"6000KG","title":"WEIGHT"},{"txt":"11500x4500x2400mm","title":"MACHINE SIZE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98ad4dd9a8-11 .jpg","title":"Engineered for Mass Grid Production","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-WG-2030S<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
Grid Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
W-shaped: Φ2.0mm \/ Plastic wrapped: Φ3.0mm<\/div>\n<\/div>\n
\n
No. of Control Axis<\/div>\n
28-34 Axis<\/div>\n<\/div>\n
\n
Weaving Station<\/div>\n
10 Axis<\/div>\n<\/div>\n
\n
W Forming Station<\/div>\n
2-4 Axis<\/div>\n<\/div>\n
\n
Plastic Wrapped Station<\/div>\n
12 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
30KW<\/div>\n<\/div>\n
\n
Stabilized Power (Ref)<\/div>\n
40KW<\/div>\n<\/div>\n
\n
Pneumatic System<\/div>\n
0.5-0.6MPa<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
6000KG<\/div>\n<\/div>\n
\n
Machine Size(L×W×H)<\/div>\n
11500×4500×2400mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Auxiliary Equipment Info<\/h2>\n<\/div>\n
\n
\n
Automatic Feeder Load<\/div>\n
200KG<\/div>\n<\/div>\n
\n
Feeder Tray Diameter<\/div>\n
Φ1800mm<\/div>\n<\/div>\n
\n
Feeder Input Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Feeder Size(L×W×H)<\/div>\n
2200×2200×1500mm<\/div>\n<\/div>\n
\n
Grid Collecting Device<\/div>\n
Automatic Conveyor (Optional)<\/div>\n<\/div>\n
\n
Control System<\/div>\n
PLC + Touch Screen<\/div>\n<\/div>\n
\n
Protection Level<\/div>\n
IP54<\/div>\n<\/div>\n
\n
Operating Temperature<\/div>\n
-5\u2103~40\u2103<\/div>\n<\/div>\n
\n
Core Function<\/div>\n
Feeding→Forming→Cutting→Collecting<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83b3a7cc43-Seat%20Frame%20Wire%20Forming%20Machine%20BL-WG-2030S.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e989ec62f67-jimeng-2026-02-24-6810-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u548c\u73bb\u7483\u53cd\u5149\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45\u7070\u8272\u6e10\u53d8\u80cc\u666f....png","title":"BL-WG-2030S","description":"BL-WG-2030S: Seat frame wire forming machine (grid machine), W-shaped steel wire 2.0mm \/ plastic wrapped steel wire 3.0mm, 30KW total power, 6000KG weight."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac86f99300-split-image-4.jpg","desc":"Automotive","title":"Automotive seat serpentine spring frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac87640eef-split-image-1.jpg","desc":"Automotive","title":"Two-tone car seat spring assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac87ca1c56-split-image-2.jpg","desc":"Automotive","title":"Seat serpentine springs with mounting hooks"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac8813c9d3-split-image-3.jpg","desc":"Automotive","title":"Seat backrest wave-shaped spring support"}],"diy_faq":null,"category_info":{"id":27,"guid":"HYoYHkEWNMI4m3f0kbSCo","language":"en","name":"Automotive Wire Mesh Forming Machine","label":"Automotive Wire Mesh Forming Machine","value":27,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:39"},{"id":18,"guid":"W1IDfvuIgzfpxmd49eAr9","sort":1,"name":"BL-YG-12A 12-Axis CNC Wiper Linkage Arm Forming Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-06\/6a4b27d60fb18-12A.jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0134161ef22-jimeng-2026-02-24-4544-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u4e3b\u4f53\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6742\u7269\u548c\u73af\u5883\u5e72\u6270\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45\u7070\u8272\u6e10\u53d8\u80cc\u666f....png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-11\/6a0134081541c-jimeng-2026-02-24-1816-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u4e3b\u4f53\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u4eba\u5458\u548c\u6742\u7269\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45\u7070\u8272\u6e10\u53d8\u80cc\u666f\uff0c\u7a81....png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98b9f365f8-jimeng-2026-02-24-5923-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u5de5\u4e1a\u8bbe\u5907\u4e3b\u4f53\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u5de5\u5177\u3001\u6742\u7269\u548c\u73af\u5883\u5e72\u6270\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45\u7070\u8272\u6e10....png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98bcbe8455-jimeng-2026-02-24-9987-\u4fdd\u7559\u5de5\u4e1a\u8bbe\u5907\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u6742\u7269\uff0c\u66ff\u6362\u4e3a\u4e13\u4e1a\u7684\u6df1\u7070\u8272\u79d1\u6280\u80cc\u666f\uff0c\u6dfb\u52a0\u67d4\u548c\u7684\u73af\u5883\u5149.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98bc261aac-jimeng-2026-02-24-5580-\u4fdd\u7559\u5c55\u793a\u4ea7\u54c1\u548c\u5c55\u793a\u76d2\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u62fc\u63a5\u7f1d\u9699\u548c\u73af\u5883\u5e72\u6270\uff0c\u66ff\u6362\u4e3a\u4e13\u4e1a\u7684\u6df1\u7070\u8272\u79d1\u6280\u80cc\u666f....png"}],"video":null,"description":"
The BL-YG-12A is a fully automatic 12-axis CNC wiper linkage arm forming machine specifically designed for manufacturing automotive wiper linkage arms from flat steel wire. Supporting 4×9mm and 4×12mm flat wire materials, it integrates automatic feeding, bending, punching, twisting, cutting, and forming into a single production cycle to maximize efficiency and product consistency. Powered by a 55.9KW servo system and built with a 16,000KG heavy-duty frame, the machine delivers exceptional precision, stability, and long-term reliability. It is the ideal solution for high-volume production of automotive wiper linkage arms and other complex flat wire components requiring multiple forming operations.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-YG-12A Wiper Linkage Arm Forming Machine | Belan","seo_keywords":["wiper arm forming machine","automotive wire forming machine","wiper linkage bending machine","BL-YG-12A"],"seo_description":"BL-YG-12A CNC forming machine for automotive wiper linkage arms. Delivers high precision and stable production performance.","url":"bl-yg-12a","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:44","updated_at":"2026-07-06 11:58","translated_at":null,"total_view":0,"total_sold":0,"category_id":18,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Thick 4mm x 9mm \/ 4mm x 12mm","title":"APPLICABLE WIRE DIA"},{"txt":"12 Axis","title":"NO. OF AXIS"},{"txt":"55.9KW","title":"TOTAL POWER"},{"txt":"500mm","title":"BENDING STROKE"},{"txt":"16000KG","title":"WEIGHT"},{"txt":"12000x2500x2400mm","title":"MACHINE SIZE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98c2e129dc-jimeng-2026-02-24-2983-\u5c06\u56fe1\u7684\u5de5\u4e1a\u8bbe\u5907\u653e\u7f6e\u5230\u56fe2\u7684\u6df1\u8272\u80cc\u666f\u4e2d\uff0c\u6dfb\u52a0\u8f7b\u5fae\u7684\u5730\u9762\u53cd\u5149\u6548\u679c (1).png","title":"BL-YG-12A","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-YG-12A<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Thick 4mm × Width 9mm \/ 12mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
500mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
12 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
55.9KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Power of Turning Motor<\/div>\n
4.4KW×2<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
4.0KW<\/div>\n<\/div>\n
\n
Power of Inner Roll Motor<\/div>\n
2.5KW<\/div>\n<\/div>\n
\n
(Front\/rear) Motor Power<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
Power of Lifting Motor<\/div>\n
4.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
3.0KW<\/div>\n<\/div>\n
\n
(Front\/rear) Wire Cutter Motor Power<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
Power of Ram Motor<\/div>\n
7.5KW×3<\/div>\n<\/div>\n
\n
Operating Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
12000×2500×2400mm<\/div>\n<\/div>\n
\n
Weight of Machine<\/div>\n
16000KG<\/div>\n<\/div>\n
\n
Automatic Feeder Load-bearing<\/div>\n
1000KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Parts Brand & Origin<\/h2>\n<\/div>\n
\n
\n
Servo Motor<\/div>\n
Yaskawa (Japan)<\/div>\n<\/div>\n
\n
Reducer<\/div>\n
NEUGART (Germany)<\/div>\n<\/div>\n
\n
Rotating arm reducer<\/div>\n
CST (Taiwan)<\/div>\n<\/div>\n
\n
Bearing<\/div>\n
NSK\/IKO\/SKF (Japan)<\/div>\n<\/div>\n
\n
Bearing<\/div>\n
FAG (Germany)<\/div>\n<\/div>\n
\n
Screw guide rail<\/div>\n
HIWIN (Taiwan)<\/div>\n<\/div>\n
\n
Computer system<\/div>\n
Yitu (Taiwan)<\/div>\n<\/div>\n
\n
Switch power supply<\/div>\n
Mean Well (Taiwan)<\/div>\n<\/div>\n
\n
Frequency Converter<\/div>\n
Inovance (Shenzhen)<\/div>\n<\/div>\n
\n
Circuit breaker<\/div>\n
Schneider (France)<\/div>\n<\/div>\n
\n
AC Contactor<\/div>\n
Schneider (France)<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/NrGrRk2BrdA","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a461906d2fe0-image.png","title":"BL-YG-12A","description":"Wiper arm all-in-one bender Wiper Arm Manufacturing Equipment Integrated Wiper Arm Production Line"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9901b7693e-8.1\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Windshield wiper arm"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9901fba9bf-8.2\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Windshield wiper assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9902293047-8.3\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Classic car wiper blade"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e990293fd03-1721112542242.png","desc":"Automotive","title":"Bent wire connecting rod"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9902d9a4af-jimeng-2026-02-24-1981-\u4fdd\u7559\u91d1\u5c5e\u96f6\u4ef6\u4e3b\u4f53\uff0c\u5c06\u80cc\u666f\u6539\u4e3a\u7eaf\u767d\u8272\uff0c\u589e\u5f3a\u96f6\u4ef6\u91d1\u5c5e\u8d28\u611f.png","desc":"Automotive","title":"V-shaped metal bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e99031782dd-jimeng-2026-02-24-2762-\u4fdd\u7559\u91d1\u5c5e\u96f6\u4ef6\u4e3b\u4f53\uff0c\u5c06\u80cc\u666f\u6539\u4e3a\u7eaf\u767d\u8272\uff0c\u589e\u5f3a\u96f6\u4ef6\u91d1\u5c5e\u8d28\u611f.png","desc":"Automotive","title":"V-shaped stamped metal bracket"}],"diy_faq":null,"category_info":{"id":18,"guid":"2kQooMIJuCyESDCgr_Fd_","language":"en","name":"Automotive Wiper Rod Forming Machine","label":"Automotive Wiper Rod Forming Machine","value":18,"defer":false,"collapsed":false},"updated_at_label":"07\/06 11:58"},{"id":25,"guid":"6euOoQBWDX2iAEqqlVhMB","sort":0,"name":"BL-3D-DT51400 8-Axis CNC Heading & Bending Integrated Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afa47e37b-606091105 (3).jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afae554fd-606091105 (2).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb321eac-606091105 (4).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb6e1656-606091105.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afbb5dbd5-606091105 (1).jpg"}],"video":null,"description":"
BL-3D-DT51400 is a high-capacity 8-axis CNC heading and bending integrated machine developed for manufacturing heavy-duty wire components that require cold heading and precision bending in a single production cycle. Designed for wire diameters from Φ6.0–14.0mm (tensile strength ≤500N), it combines upsetting, feeding, bending, cornering, and cutting into one automated operation to maximize efficiency and product consistency. Powered by a 72.1KW servo system and built on a rigid 15,500KG machine frame, it provides exceptional stability for continuous production of automotive exhaust hangers, suspension components, heavy-duty hooks, and other precision wire products.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-DT51400 CNC Heading & Bending Machine | Belan","seo_keywords":["BL-3D-DT51400","heading and bending machine","wire cold heading","8-axis CNC","wire forming machine"],"seo_description":"BL-3D-DT51400 CNC heading and bending machine for large-diameter wire forming. Suitable for automotive wire components.","url":"bl-3d-dt51400","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-09 14:24","updated_at":"2026-06-30 09:47","translated_at":null,"total_view":0,"total_sold":0,"category_id":26,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"\u03a66.0\u201314.0mm (Tensile strength \u2264500N)","title":"APPLICABLE WIRE DIAMETER:"},{"txt":"8 axes","title":"NO. OF CONTROL AXES:"},{"txt":"72.1 KW","title":"TOTAL POWER:"},{"txt":"15500 KG","title":"MACHINE WEIGHT:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27b30a7b1ca-606091105.jpg","title":"BL-3D-DT51400","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-DT51400<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Φ6.0-14.0mm (≤500N)<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
\/<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
72.1KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
15KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
4.5KW (Cornering)<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.2KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.9KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
\/<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
15500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
5640×2350×2070mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1900mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2200×900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":[],"diy_application":null,"diy_faq":null,"category_info":{"id":26,"guid":"XM5Y3JCUyGco80r9zUJz4","language":"en","name":"Exhaust Hanger Upsetting & Bending Integrated Machine","label":"Exhaust Hanger Upsetting & Bending Integrated Machine","value":26,"defer":false,"collapsed":false},"updated_at_label":"06\/30 09:47"},{"id":24,"guid":"PVu6HbUKxChAZ3ATqihOA","sort":0,"name":"BL-3D-DT51200 8-Axis CNC Heading & Bending Integrated Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afa47e37b-606091105 (3).jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afae554fd-606091105 (2).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb321eac-606091105 (4).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb6e1656-606091105.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afbb5dbd5-606091105 (1).jpg"}],"video":null,"description":"
BL-3D-DT51200 is an 8-axis CNC heading and bending integrated machine designed for the one-piece production of automotive exhaust hangers, hood support rods, and other wire components requiring upsetting before bending. Supporting wire diameters from Φ6.0–12.0mm (tensile strength ≤500N), it integrates wire feeding, upsetting, bending, cornering, and cutting into a single automated process, eliminating secondary positioning and improving dimensional consistency. Equipped with a 67.5KW high-power servo system, imported SANYO servo motors, Newcat reducers, and a 10,500KG heavy-duty frame, the machine delivers stable, high-efficiency production for high-volume automotive manufacturing.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-DT51200 CNC Heading & Bending Machine | Belan","seo_keywords":["BL-3D-DT51200","heading and bending machine","wire cold heading","8-axis CNC","wire forming machine"],"seo_description":"BL-3D-DT51200 CNC heading and bending machine combining cold heading and wire forming for industrial applications.","url":"bl-3d-dt51200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-09 14:24","updated_at":"2026-07-15 14:37","translated_at":null,"total_view":0,"total_sold":0,"category_id":26,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"\u03a66.0\u201312.0mm (Tensile strength \u2264500N)","title":"APPLICABLE WIRE DIAMETER:"},{"txt":"8 axes","title":"NO. OF CONTROL AXES:"},{"txt":"67.5 KW","title":"TOTAL POWER:"},{"txt":"10500 KG","title":"MACHINE WEIGHT:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27b05e5a1e0-606091105 (1).jpg","title":"BL-3D-DT51200","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-DT51200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Φ6.0-12.0mm (≤500N)<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
\/<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
67.5KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
3.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
15KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW (Cornering)<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
\/<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
10500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
5040×2350×2070mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1900mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2200×900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/OsdBjrHVWVs","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46194b751e4-image.png","title":"BL-3D-DT51200","description":"Heading bending all-in-one machine for automotive hook one-step forming"},"diy_application":null,"diy_faq":null,"category_info":{"id":26,"guid":"XM5Y3JCUyGco80r9zUJz4","language":"en","name":"Exhaust Hanger Upsetting & Bending Integrated Machine","label":"Exhaust Hanger Upsetting & Bending Integrated Machine","value":26,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:37"}]" onmouseenter="showCategoryProducts(this)">
Peralatan pembengkokan suku cadang otomotif

The BL-WG-2030S is a fully automatic automotive wire mesh forming machine developed for high-efficiency production of automotive seat frame mesh and welded wire assemblies. Designed for Φ2.0mm W-shaped steel wire and Φ3.0mm plastic-coated steel wire, it integrates automatic wire feeding, mesh forming, cutting, and finished product collection into one continuous production process. Featuring 28–34 servo-controlled axes, 30KW total power, and a robust 6000KG machine structure, it delivers outstanding forming accuracy, production efficiency, and long-term operational stability. The BL-WG-2030S is an ideal solution for manufacturing automotive seat frame mesh, welded wire structures, and other precision wire mesh components.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-WG-2030S Seat Frame Wire Forming Machine | Belan","seo_keywords":["auto parts wire forming","car seat wire former","auto wire mesh bender","seat frame production line","BL-WG-2030S"],"seo_description":"BL-WG-2030S wire forming machine for automotive seat frame production. Designed for efficient and accurate wire processing.","url":"bl-wg-2030s","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:44","updated_at":"2026-07-15 14:39","translated_at":null,"total_view":0,"total_sold":0,"category_id":27,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"W-shaped steel wire 2.0mm \/ Plastic wrapped steel wire 3.0mm","title":"APPLICABLE WIRE DIA"},{"txt":"28-34 Axis","title":"NO. OF AXIS"},{"txt":"30KW","title":"TOTAL POWER"},{"txt":"6000KG","title":"WEIGHT"},{"txt":"11500x4500x2400mm","title":"MACHINE SIZE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98ad4dd9a8-11 .jpg","title":"Engineered for Mass Grid Production","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-WG-2030S<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
Grid Machine<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
W-shaped: Φ2.0mm \/ Plastic wrapped: Φ3.0mm<\/div>\n<\/div>\n
\n
No. of Control Axis<\/div>\n
28-34 Axis<\/div>\n<\/div>\n
\n
Weaving Station<\/div>\n
10 Axis<\/div>\n<\/div>\n
\n
W Forming Station<\/div>\n
2-4 Axis<\/div>\n<\/div>\n
\n
Plastic Wrapped Station<\/div>\n
12 Axis<\/div>\n<\/div>\n
\n
Total Power<\/div>\n
30KW<\/div>\n<\/div>\n
\n
Stabilized Power (Ref)<\/div>\n
40KW<\/div>\n<\/div>\n
\n
Pneumatic System<\/div>\n
0.5-0.6MPa<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
6000KG<\/div>\n<\/div>\n
\n
Machine Size(L×W×H)<\/div>\n
11500×4500×2400mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Auxiliary Equipment Info<\/h2>\n<\/div>\n
\n
\n
Automatic Feeder Load<\/div>\n
200KG<\/div>\n<\/div>\n
\n
Feeder Tray Diameter<\/div>\n
Φ1800mm<\/div>\n<\/div>\n
\n
Feeder Input Power<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Feeder Size(L×W×H)<\/div>\n
2200×2200×1500mm<\/div>\n<\/div>\n
\n
Grid Collecting Device<\/div>\n
Automatic Conveyor (Optional)<\/div>\n<\/div>\n
\n
Control System<\/div>\n
PLC + Touch Screen<\/div>\n<\/div>\n
\n
Protection Level<\/div>\n
IP54<\/div>\n<\/div>\n
\n
Operating Temperature<\/div>\n
-5\u2103~40\u2103<\/div>\n<\/div>\n
\n
Core Function<\/div>\n
Feeding→Forming→Cutting→Collecting<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83b3a7cc43-Seat%20Frame%20Wire%20Forming%20Machine%20BL-WG-2030S.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e989ec62f67-jimeng-2026-02-24-6810-\u4fdd\u7559\u56fe\u7247\u4e2d\u7684\u8bbe\u5907\u4e3b\u4f53\uff0c\u6e05\u7406\u80cc\u666f\u4e2d\u7684\u73af\u5883\u5e72\u6270\u548c\u73bb\u7483\u53cd\u5149\uff0c\u66ff\u6362\u4e3a\u5e72\u51c0\u7684\u6d45\u7070\u8272\u6e10\u53d8\u80cc\u666f....png","title":"BL-WG-2030S","description":"BL-WG-2030S: Seat frame wire forming machine (grid machine), W-shaped steel wire 2.0mm \/ plastic wrapped steel wire 3.0mm, 30KW total power, 6000KG weight."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac86f99300-split-image-4.jpg","desc":"Automotive","title":"Automotive seat serpentine spring frame"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac87640eef-split-image-1.jpg","desc":"Automotive","title":"Two-tone car seat spring assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac87ca1c56-split-image-2.jpg","desc":"Automotive","title":"Seat serpentine springs with mounting hooks"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac8813c9d3-split-image-3.jpg","desc":"Automotive","title":"Seat backrest wave-shaped spring support"}],"diy_faq":null,"category_info":{"id":27,"guid":"HYoYHkEWNMI4m3f0kbSCo","language":"en","name":"Automotive Wire Mesh Forming Machine","label":"Automotive Wire Mesh Forming Machine","value":27,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:39"}]" onmouseenter="showCategoryProducts(this)"> Mesin Pembentuk Kawat Otomotif

BL-3D-DT51400 is a high-capacity 8-axis CNC heading and bending integrated machine developed for manufacturing heavy-duty wire components that require cold heading and precision bending in a single production cycle. Designed for wire diameters from Φ6.0–14.0mm (tensile strength ≤500N), it combines upsetting, feeding, bending, cornering, and cutting into one automated operation to maximize efficiency and product consistency. Powered by a 72.1KW servo system and built on a rigid 15,500KG machine frame, it provides exceptional stability for continuous production of automotive exhaust hangers, suspension components, heavy-duty hooks, and other precision wire products.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-DT51400 CNC Heading & Bending Machine | Belan","seo_keywords":["BL-3D-DT51400","heading and bending machine","wire cold heading","8-axis CNC","wire forming machine"],"seo_description":"BL-3D-DT51400 CNC heading and bending machine for large-diameter wire forming. Suitable for automotive wire components.","url":"bl-3d-dt51400","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-09 14:24","updated_at":"2026-06-30 09:47","translated_at":null,"total_view":0,"total_sold":0,"category_id":26,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"\u03a66.0\u201314.0mm (Tensile strength \u2264500N)","title":"APPLICABLE WIRE DIAMETER:"},{"txt":"8 axes","title":"NO. OF CONTROL AXES:"},{"txt":"72.1 KW","title":"TOTAL POWER:"},{"txt":"15500 KG","title":"MACHINE WEIGHT:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27b30a7b1ca-606091105.jpg","title":"BL-3D-DT51400","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-DT51400<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Φ6.0-14.0mm (≤500N)<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
\/<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
72.1KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
15KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
4.5KW (Cornering)<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
1.2KW<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.9KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
\/<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
15500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
5640×2350×2070mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1900mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2200×900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":[],"diy_application":null,"diy_faq":null,"category_info":{"id":26,"guid":"XM5Y3JCUyGco80r9zUJz4","language":"en","name":"Exhaust Hanger Upsetting & Bending Integrated Machine","label":"Exhaust Hanger Upsetting & Bending Integrated Machine","value":26,"defer":false,"collapsed":false},"updated_at_label":"06\/30 09:47"},{"id":24,"guid":"PVu6HbUKxChAZ3ATqihOA","sort":0,"name":"BL-3D-DT51200 8-Axis CNC Heading & Bending Integrated Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afa47e37b-606091105 (3).jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afae554fd-606091105 (2).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb321eac-606091105 (4).jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afb6e1656-606091105.jpg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27afbb5dbd5-606091105 (1).jpg"}],"video":null,"description":"
BL-3D-DT51200 is an 8-axis CNC heading and bending integrated machine designed for the one-piece production of automotive exhaust hangers, hood support rods, and other wire components requiring upsetting before bending. Supporting wire diameters from Φ6.0–12.0mm (tensile strength ≤500N), it integrates wire feeding, upsetting, bending, cornering, and cutting into a single automated process, eliminating secondary positioning and improving dimensional consistency. Equipped with a 67.5KW high-power servo system, imported SANYO servo motors, Newcat reducers, and a 10,500KG heavy-duty frame, the machine delivers stable, high-efficiency production for high-volume automotive manufacturing.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-3D-DT51200 CNC Heading & Bending Machine | Belan","seo_keywords":["BL-3D-DT51200","heading and bending machine","wire cold heading","8-axis CNC","wire forming machine"],"seo_description":"BL-3D-DT51200 CNC heading and bending machine combining cold heading and wire forming for industrial applications.","url":"bl-3d-dt51200","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-06-09 14:24","updated_at":"2026-07-15 14:37","translated_at":null,"total_view":0,"total_sold":0,"category_id":26,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"\u03a66.0\u201312.0mm (Tensile strength \u2264500N)","title":"APPLICABLE WIRE DIAMETER:"},{"txt":"8 axes","title":"NO. OF CONTROL AXES:"},{"txt":"67.5 KW","title":"TOTAL POWER:"},{"txt":"10500 KG","title":"MACHINE WEIGHT:"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27b05e5a1e0-606091105 (1).jpg","title":"BL-3D-DT51200","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-3D-DT51200<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Φ6.0-12.0mm (≤500N)<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
\/<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
8 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
67.5KW<\/div>\n<\/div>\n
\n
Power of Rotating arm Motor<\/div>\n
3.5KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
15KW<\/div>\n<\/div>\n
\n
Folding motor power<\/div>\n
2.0KW (Cornering)<\/div>\n<\/div>\n
\n
Lifting motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Power of Wire Cutting Motor<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Internal rotation motor power<\/div>\n
\/<\/div>\n<\/div>\n
\n
Max. wire feeding speed<\/div>\n
\/<\/div>\n<\/div>\n
\n
Wire feeding accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
\/<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
10500KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
5040×2350×2070mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Automatic Feeder Info<\/h2>\n<\/div>\n
\n
\n
Maximum load Weight<\/div>\n
1500KG<\/div>\n<\/div>\n
\n
Diameter of Round Tray<\/div>\n
φ1900mm<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
2.2KW<\/div>\n<\/div>\n
\n
Weight<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Size (L*W*H)<\/div>\n
2400×2200×900mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/OsdBjrHVWVs","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46194b751e4-image.png","title":"BL-3D-DT51200","description":"Heading bending all-in-one machine for automotive hook one-step forming"},"diy_application":null,"diy_faq":null,"category_info":{"id":26,"guid":"XM5Y3JCUyGco80r9zUJz4","language":"en","name":"Exhaust Hanger Upsetting & Bending Integrated Machine","label":"Exhaust Hanger Upsetting & Bending Integrated Machine","value":26,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:37"}]" onmouseenter="showCategoryProducts(this)"> Mesin Terintegrasi Penganggur & Pembengkokan Gantungan Knalpot

Mesin Pembentuk Kawat Rangka Kursi Otomotif

The BL-YG-12A is a fully automatic 12-axis CNC wiper linkage arm forming machine specifically designed for manufacturing automotive wiper linkage arms from flat steel wire. Supporting 4×9mm and 4×12mm flat wire materials, it integrates automatic feeding, bending, punching, twisting, cutting, and forming into a single production cycle to maximize efficiency and product consistency. Powered by a 55.9KW servo system and built with a 16,000KG heavy-duty frame, the machine delivers exceptional precision, stability, and long-term reliability. It is the ideal solution for high-volume production of automotive wiper linkage arms and other complex flat wire components requiring multiple forming operations.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-YG-12A Wiper Linkage Arm Forming Machine | Belan","seo_keywords":["wiper arm forming machine","automotive wire forming machine","wiper linkage bending machine","BL-YG-12A"],"seo_description":"BL-YG-12A CNC forming machine for automotive wiper linkage arms. Delivers high precision and stable production performance.","url":"bl-yg-12a","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-23 10:44","updated_at":"2026-07-06 11:58","translated_at":null,"total_view":0,"total_sold":0,"category_id":18,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Thick 4mm x 9mm \/ 4mm x 12mm","title":"APPLICABLE WIRE DIA"},{"txt":"12 Axis","title":"NO. OF AXIS"},{"txt":"55.9KW","title":"TOTAL POWER"},{"txt":"500mm","title":"BENDING STROKE"},{"txt":"16000KG","title":"WEIGHT"},{"txt":"12000x2500x2400mm","title":"MACHINE SIZE"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e98c2e129dc-jimeng-2026-02-24-2983-\u5c06\u56fe1\u7684\u5de5\u4e1a\u8bbe\u5907\u653e\u7f6e\u5230\u56fe2\u7684\u6df1\u8272\u80cc\u666f\u4e2d\uff0c\u6dfb\u52a0\u8f7b\u5fae\u7684\u5730\u9762\u53cd\u5149\u6548\u679c (1).png","title":"BL-YG-12A","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-YG-12A<\/div>\n<\/div>\n
\n
Applicable Wire Dia.<\/div>\n
Thick 4mm × Width 9mm \/ 12mm<\/div>\n<\/div>\n
\n
Bending stroke<\/div>\n
500mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
12 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
55.9KW<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
7.5KW<\/div>\n<\/div>\n
\n
Power of Turning Motor<\/div>\n
4.4KW×2<\/div>\n<\/div>\n
\n
Power of Angle Control Motor<\/div>\n
4.0KW<\/div>\n<\/div>\n
\n
Power of Inner Roll Motor<\/div>\n
2.5KW<\/div>\n<\/div>\n
\n
(Front\/rear) Motor Power<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
Power of Lifting Motor<\/div>\n
4.0KW<\/div>\n<\/div>\n
\n
Power of Wire Cutter Motor<\/div>\n
3.0KW<\/div>\n<\/div>\n
\n
(Front\/rear) Wire Cutter Motor Power<\/div>\n
1.8KW<\/div>\n<\/div>\n
\n
Power of Ram Motor<\/div>\n
7.5KW×3<\/div>\n<\/div>\n
\n
Operating Voltage<\/div>\n
Three-phase 380V (±20V)<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
12000×2500×2400mm<\/div>\n<\/div>\n
\n
Weight of Machine<\/div>\n
16000KG<\/div>\n<\/div>\n
\n
Automatic Feeder Load-bearing<\/div>\n
1000KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Parts Brand & Origin<\/h2>\n<\/div>\n
\n
\n
Servo Motor<\/div>\n
Yaskawa (Japan)<\/div>\n<\/div>\n
\n
Reducer<\/div>\n
NEUGART (Germany)<\/div>\n<\/div>\n
\n
Rotating arm reducer<\/div>\n
CST (Taiwan)<\/div>\n<\/div>\n
\n
Bearing<\/div>\n
NSK\/IKO\/SKF (Japan)<\/div>\n<\/div>\n
\n
Bearing<\/div>\n
FAG (Germany)<\/div>\n<\/div>\n
\n
Screw guide rail<\/div>\n
HIWIN (Taiwan)<\/div>\n<\/div>\n
\n
Computer system<\/div>\n
Yitu (Taiwan)<\/div>\n<\/div>\n
\n
Switch power supply<\/div>\n
Mean Well (Taiwan)<\/div>\n<\/div>\n
\n
Frequency Converter<\/div>\n
Inovance (Shenzhen)<\/div>\n<\/div>\n
\n
Circuit breaker<\/div>\n
Schneider (France)<\/div>\n<\/div>\n
\n
AC Contactor<\/div>\n
Schneider (France)<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/NrGrRk2BrdA","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a461906d2fe0-image.png","title":"BL-YG-12A","description":"Wiper arm all-in-one bender Wiper Arm Manufacturing Equipment Integrated Wiper Arm Production Line"},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9901b7693e-8.1\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Windshield wiper arm"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9901fba9bf-8.2\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Windshield wiper assembly"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9902293047-8.3\u6c7d\u8f66\u96e8\u522e\u5668\u81c2\u6746\u6210\u578b.jpg","desc":"Automotive","title":"Classic car wiper blade"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e990293fd03-1721112542242.png","desc":"Automotive","title":"Bent wire connecting rod"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e9902d9a4af-jimeng-2026-02-24-1981-\u4fdd\u7559\u91d1\u5c5e\u96f6\u4ef6\u4e3b\u4f53\uff0c\u5c06\u80cc\u666f\u6539\u4e3a\u7eaf\u767d\u8272\uff0c\u589e\u5f3a\u96f6\u4ef6\u91d1\u5c5e\u8d28\u611f.png","desc":"Automotive","title":"V-shaped metal bracket"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-23\/69e99031782dd-jimeng-2026-02-24-2762-\u4fdd\u7559\u91d1\u5c5e\u96f6\u4ef6\u4e3b\u4f53\uff0c\u5c06\u80cc\u666f\u6539\u4e3a\u7eaf\u767d\u8272\uff0c\u589e\u5f3a\u96f6\u4ef6\u91d1\u5c5e\u8d28\u611f.png","desc":"Automotive","title":"V-shaped stamped metal bracket"}],"diy_faq":null,"category_info":{"id":18,"guid":"2kQooMIJuCyESDCgr_Fd_","language":"en","name":"Automotive Wiper Rod Forming Machine","label":"Automotive Wiper Rod Forming Machine","value":18,"defer":false,"collapsed":false},"updated_at_label":"07\/06 11:58"}]" onmouseenter="showCategoryProducts(this)"> Mesin Pembentukan Batang Wiper Otomotif

The BL-TP-45-6E is a high-performance 13-axis TP Series special wire bending machine designed for precision forming of special-profile wire, flat wire, and other non-standard metal wire materials used in automotive, hardware, and industrial manufacturing. Supporting wire widths from 2.0–8.0mm and thicknesses from 8.0–45.0mm, it combines crawler feeding, multi-axis CNC control, bending, rotating, shearing, and curling into one automated process. Equipped with a 35.2KW servo drive system and a rigid 3800KG machine frame, it delivers outstanding forming flexibility, dimensional accuracy, and production efficiency for complex special wire components.<\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-TP-45-6E 13-Axis Busbar Bending Machine | Belan","seo_keywords":["busbar bending machine","copper busbar bending machine","aluminum busbar bending machine"],"seo_description":"BL-TP-45-6E 13-axis busbar bending machine for copper and aluminum bars. High-precision forming for electrical equipment manufacturing.","url":"bl-tp-45-6e","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 16:55","updated_at":"2026-07-15 14:50","translated_at":null,"total_view":0,"total_sold":0,"category_id":9,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Width \u03a62.0-8.0mm \/ Thickness \u03a68.0-45mm","title":"APPLICABLE WIRE SPEC"},{"txt":"13 Axis","title":"NO. OF CONTROL AXES"},{"txt":"35.2KW","title":"TOTAL POWER"},{"txt":"3800KG","title":"MACHINE WEIGHT"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88c8d082d8-IMG_3781.jpg","title":"Engineered for High-Precision Special Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-TP-45-6E<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
13-axis Special Wire Bending Machine (TP Series)<\/div>\n<\/div>\n
\n
Applicable Wire Spec<\/div>\n
Width Φ2.0-8.0mm \/ Thickness Φ8.0-45mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
13 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
35.2KW<\/div>\n<\/div>\n
\n
Crawler Feeding<\/div>\n
1PC<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Servo Shear Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Arm Motor (Group 1)<\/div>\n
2.0KW*6<\/div>\n<\/div>\n
\n
Power of Arm Motor (Group 2)<\/div>\n
5.5KW*2<\/div>\n<\/div>\n
\n
Power of Curl Motor<\/div>\n
2.0KW*2<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
2800×2200×2100mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Feeder & Site Info<\/h2>\n<\/div>\n
\n
\n
Automatic Feeder Max Load<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Feeder Type<\/div>\n
Special Wire Matching Feeder<\/div>\n<\/div>\n
\n
Site Occupation (L*W)<\/div>\n
6800×3500mm<\/div>\n<\/div>\n
\n
Feeding System<\/div>\n
Crawler Feeding (1PC)<\/div>\n<\/div>\n
\n
Wire Processing Type<\/div>\n
Special Wire (Width\/Thickness)<\/div>\n<\/div>\n
\n
Motor Group Quantity<\/div>\n
12 Sets (Total)<\/div>\n<\/div>\n
\n
Core Application<\/div>\n
High-Precision Special Wire Forming<\/div>\n<\/div>\n
\n
Power Supply Requirement<\/div>\n
380V\/50Hz\/3Ph (Stable)<\/div>\n<\/div>\n
\n
Equipment Advantages<\/div>\n
13-Axis Control + Multi-Motor<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e83af9a8236-Copper_&_Aluminum_Busbar_Bending_Machine_BL-TP-45-6E.mp4","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88cbcb46f1-TP-30-5E.png","title":"BL-TP-45-6E","description":"BL-TP-45-6E: 13-axis high-precision special wire bending machine (TP Series) for wires with width \u03a62.0-8.0mm & thickness \u03a68.0-45mm, featuring crawler feeding and multi-group motors, enabling complex multi-dimensional forming."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac53929e8d-Snipaste_2026-04-23_16-19-32.jpg","desc":"Electrical","title":"Bent copper bar connectors"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac53e12272-Snipaste_2026-04-23_16-20-10.jpg","desc":"Automotive","title":"Special-shaped copper busbars"}],"diy_faq":null,"category_info":{"id":9,"guid":"QIbnEJyfYD-AqMQZJdI58","language":"en","name":"EV Copper & Aluminum Busbar Bending Machine","label":"EV Copper & Aluminum Busbar Bending Machine","value":9,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:50"},{"id":23,"guid":"FcauggohLUy36ZrN3M3GW","sort":8,"name":"BL-TP-50-7E 13-Axis Copper & Aluminum Busbar Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a2775f884a2a-606090946.jpeg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a2776003fa3b-2606091005.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a2776084b564-202606091009.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedf375cfb2-Belan41.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedf3d35e12-Belan37.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a2776128a456-2606091006.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27761b737e9-2606091005 (2).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88d7178b90-wirefeer.jpg"}],"video":null,"description":"
BL-TP-50-7E is a professional 13-axis CNC busbar bending machine developed for precision forming of copper and aluminum busbars used in EV power systems, switchgear, electrical distribution equipment, and energy storage applications. It supports copper busbars up to 45×7mm and aluminum busbars up to 50×8mm, integrating feeding, rotating, bending, curling, and servo shearing into a single automated production process. Equipped with a powerful 58.7KW full-servo system, a heavy-duty 6800KG machine frame, and premium control components, the BL-TP-50-7E delivers exceptional forming accuracy, production efficiency, and long-term reliability for high-volume busbar manufacturing.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-TP-50-7E Servo Busbar Bending Machine | Belan","seo_keywords":["BL-TP-50-7E","servo busbar bending machine","busbar bending machine","copper busbar bending machine"],"seo_description":"BL-TP-50-7E full-servo busbar bending machine for copper and aluminum busbars. Designed for efficient and accurate production.","url":"bl-tp-50-7e","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 17:00","updated_at":"2026-07-15 14:51","translated_at":null,"total_view":0,"total_sold":0,"category_id":9,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Copper busbar (width 15\u201345mm, thickness 1.0\u20137.0mm); Aluminum busbar (width 15\u201350mm, thickness 1.0\u20138.0mm)","title":"APPLICABLE WIRE SPEC"},{"txt":"13 axes","title":"NO. OF CONTROL AXES"},{"txt":"58.7 KW","title":"TOTAL POWER"},{"txt":"6800 KG","title":"MACHINE WEIGHT"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a2776229795a-606090946-copy-0.jpeg","title":"TP-50-7E","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
TP-50-7E<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
13-axis Copper & Aluminum Busbar Bending Machine (TP Series)<\/div>\n<\/div>\n
\n
Applicable Busbar Spec<\/div>\n
Copper: W15-45mm \/ T1.0-7.0mm
Aluminum: W15-50mm \/ T1.0-8.0mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
13 Axis<\/div>\n<\/div>\n
\n
Total Servo Power<\/div>\n
58.7 KW<\/div>\n<\/div>\n
\n
Power of Feeding Motor<\/div>\n
4.5 KW<\/div>\n<\/div>\n
\n
Power of Turning Motor<\/div>\n
2.7 KW<\/div>\n<\/div>\n
\n
Servo Shear Motor Power<\/div>\n
1.0 KW<\/div>\n<\/div>\n
\n
Power of Arm Motor<\/div>\n
5.5 KW × 8<\/div>\n<\/div>\n
\n
Curling Motor 1 Power<\/div>\n
2.0 KW<\/div>\n<\/div>\n
\n
Curling Motor 2 Power<\/div>\n
4.5 KW<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V \/ 50Hz \/ 3Ph (±20V)<\/div>\n<\/div>\n
\n
Machine Weight<\/div>\n
6800 KG<\/div>\n<\/div>\n
\n
Machine Size (L×W×H)<\/div>\n
3000 × 2200 × 2100 mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Feeder & Site Info<\/h2>\n<\/div>\n
\n
\n
Automatic Feeder Max Load<\/div>\n
1500 KG<\/div>\n<\/div>\n
\n
Site Occupation (L×W)<\/div>\n
8000 × 3600 mm<\/div>\n<\/div>\n
\n
Feeding System<\/div>\n
Servo Motor Feeding (4.5KW)<\/div>\n<\/div>\n
\n
Busbar Processing Type<\/div>\n
Copper \/ Aluminum Flat Busbar<\/div>\n<\/div>\n
\n
Core Advantage<\/div>\n
13-Axis Full Servo Control<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/awaqNR2fLOU","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-09\/6a27762aad320-606090946-copy-0.jpeg","title":"BL-TP-30-5E","description":"BL-TP-30-5E: 5-axis special wire bending machine (TP Series) for medium-small size special wires (Width \u03a61.5-6.0mm \/ Thickness \u03a65.0-30.0mm), featuring crawler feeding and compact design for precise forming."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac57f2ea01-Snipaste_2026-04-23_16-19-32.jpg","desc":"Electrical","title":"Bent copper bar connectors"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac5814f541-Snipaste_2026-04-23_16-20-10.jpg","desc":"Automotive","title":"Special-shaped copper busbars"}],"diy_faq":null,"category_info":{"id":9,"guid":"QIbnEJyfYD-AqMQZJdI58","language":"en","name":"EV Copper & Aluminum Busbar Bending Machine","label":"EV Copper & Aluminum Busbar Bending Machine","value":9,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:51"},{"id":9,"guid":"RIci51mHDz4scxkVKyAMs","sort":8,"name":"BL-TP-30-5E 12-Axis TP Series Special Wire Bending Machine","tags":null,"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-17\/6a31eb81f208d-d_202606161100 (3).jpg","images":[{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-17\/6a31ebaf43f7f-2606091005.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-17\/6a31ebb500f31-202606091009.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedf375cfb2-Belan41.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-05-09\/69fedf3d35e12-Belan37.png"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-17\/6a31ebbb7a7c1-2606091006.jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-06-17\/6a31ebc758df5-2606091005 (2).jpeg"},{"url":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88d7178b90-wirefeer.jpg"}],"video":null,"description":"
The BL-TP-30-5E is a 12-axis TP Series special wire bending machine developed for precision processing of flat wire, special-profile conductors, and compact electrical components used in EV busbar systems and industrial electrical equipment. Supporting wire widths from 2.0–5.0mm and thicknesses from 5.0–30.0mm, it integrates crawler feeding, CNC bending, rotating, shearing, and multi-axis forming into one efficient production process. Powered by a 25.7KW servo system and supported by a robust 3800KG machine frame, it provides stable, high-precision production for electrical hardware, automotive components, and precision special wire applications.<\/span><\/p>","featured":false,"model":null,"brand":null,"price":null,"stock":0,"price_mode":"close","unit":"\u4ef6","min_order":1,"payment_method":null,"port":null,"certification":null,"place":null,"packaging":null,"product_feature_content":null,"specification":null,"standard_option":null,"seo_title":"BL-TP-30-5E TP Busbar Bending Machine | Belan","seo_keywords":["BL-TP-30-5E","busbar bending machine","tp busbar bending machine","copper busbar bending machine"],"seo_description":"BL-TP-30-5E busbar bending machine for precision copper and aluminum busbar forming in electrical and new energy industries.","url":"bl-tp-30-5e","sku":null,"sku_property":null,"status_on_sale":false,"created_at":"2026-04-22 17:00","updated_at":"2026-07-15 14:51","translated_at":null,"total_view":0,"total_sold":0,"category_id":9,"language":"en","title":null,"img":null,"diy_params":null,"tabs":null,"deleted_at":null,"status":null,"score":null,"is_show":true,"category_ids":null,"diy_parameter":[{"txt":"Width \u03a62.0-5.0mm \/ Thickness \u03a65.0-30mm","title":"APPLICABLE WIRE SPEC"},{"txt":"12 Axis","title":"NO. OF CONTROL AXES"},{"txt":"25KW","title":"TOTAL POWER"},{"txt":"3800KG","title":"MACHINE WEIGHT"}],"diy_advantage":{"image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88e0576f0d-TP-30-5E.png","title":"Engineered for Medium-Small Size Special Wire Forming","card_list":[{"icon":"
\n
\n
\n
\n
\n
$\"\"$ Technical Data<\/h2>\n<\/div>\n
\n
\n
Model<\/div>\n
BL-TP-30-5E<\/div>\n<\/div>\n
\n
Machine Type<\/div>\n
12-axis Special Wire Bending Machine (TP Series)<\/div>\n<\/div>\n
\n
Applicable Wire Spec<\/div>\n
Width Φ2.0-5.0mm \/ Thickness Φ5.0-30mm<\/div>\n<\/div>\n
\n
No. Of Control Axis<\/div>\n
12 Axis<\/div>\n<\/div>\n
\n
Total power<\/div>\n
25.7KW<\/div>\n<\/div>\n
\n
Crawler Feeding<\/div>\n
1PC<\/div>\n<\/div>\n
\n
Power of Wire Feeding Motor<\/div>\n
4.5KW<\/div>\n<\/div>\n
\n
Power of Wire Turning Motor<\/div>\n
2.7KW<\/div>\n<\/div>\n
\n
Servo Shear Motor Power<\/div>\n
1.0KW<\/div>\n<\/div>\n
\n
Power of Arm Motor<\/div>\n
2.0KW*8<\/div>\n<\/div>\n
\n
Power of Curl Motor<\/div>\n
1.5KW<\/div>\n<\/div>\n
\n
Angle accuracy<\/div>\n
90°±0.2°<\/div>\n<\/div>\n
\n
Input Power<\/div>\n
380V\/50Hz\/3Ph<\/div>\n<\/div>\n
\n
Weight<\/div>\n
3800KG<\/div>\n<\/div>\n
\n
Machine Size(L*W*H)<\/div>\n
2800×2100×2000mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n
\n
\n
\n
$\"\"$ Feeder & Site Info<\/h2>\n<\/div>\n
\n
\n
Automatic Feeder Max Load<\/div>\n
1000KG<\/div>\n<\/div>\n
\n
Site Occupation (L*W)<\/div>\n
6800×2500mm<\/div>\n<\/div>\n
\n
Feeding System<\/div>\n
Crawler Feeding (1PC)<\/div>\n<\/div>\n
\n
Wire Processing Type<\/div>\n
Special Wire (Width\/Thickness)<\/div>\n<\/div>\n
\n
Core Advantage<\/div>\n
12-Axis High Precision Control<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/35eVClyuGsY","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-22\/69e88e2b4c2a7-TP-30-5E.png","title":"BL-TP-30-5E","description":"BL-TP-30-5E: 5-axis special wire bending machine (TP Series) for medium-small size special wires (Width \u03a61.5-6.0mm \/ Thickness \u03a65.0-30.0mm), featuring crawler feeding and compact design for precise forming."},"diy_application":[{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac57f2ea01-Snipaste_2026-04-23_16-19-32.jpg","desc":"Electrical","title":"Bent copper bar connectors"},{"pic":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-04-24\/69eac5814f541-Snipaste_2026-04-23_16-20-10.jpg","desc":"Automotive","title":"Special-shaped copper busbars"}],"diy_faq":null,"category_info":{"id":9,"guid":"QIbnEJyfYD-AqMQZJdI58","language":"en","name":"EV Copper & Aluminum Busbar Bending Machine","label":"EV Copper & Aluminum Busbar Bending Machine","value":9,"defer":false,"collapsed":false},"updated_at_label":"07\/15 14:51"}]" onmouseenter="showCategoryProducts(this)">
Mesin Pembengkokan Busbar Tembaga & Aluminium EV

Lihat Semua Produk

Mesin Pembengkok Kawat CNC 5-Sumbu BL-3D-5600

Selengkapnya

Mesin Pembengkok Kawat CNC 5-Sumbu BL-3D-5800

Selengkapnya

Mesin Pembengkok Kawat 6-Sumbu BL-3D-6800

Selengkapnya

Mesin Pembengkokan Kawat CNC 6-Sumbu Diameter Kecil BL-3D-6250

Selengkapnya

Mesin Pembengkokan Kawat CNC 5-Sumbu BL-3D-51400

Selengkapnya

BL-3D-51200 Mesin Pembengkokan Kawat CNC 5-Sumbu

Selengkapnya

BL-3D-51600 Mesin Pembengkok Kawat CNC 5-Sumbu

Selengkapnya

Mesin Pembengkok Kawat CNC 6-Sumbu BL-3D-61200

Selengkapnya

Layanan

LAYANAN

Layanan

Alur Pesanan

Prosedur pemesanan lengkap

Dukungan Purna Jual

Pemeliharaan, Perbaikan & Pelatihan Operasi Gratis

Makalah Putih

Dokumentasi teknis

Kebijakan Garansi

Jaminan layanan

Unggulan
Dukungan siklus hidup komprehensif untuk peralatan Anda
Jelajahi

Aplikasi

Solusi Industri

Temukan solusi pembengkokan kawat khusus kami disesuaikan untuk berbagai industri dan spesifik kebutuhan manufaktur.
Lihat Semua

Solusi Pembentukan Kawat Industri

Solusi Otomasi Robotik Pembentukan Kawat

Solusi Pembentukan Perkakas Dapur & Kamar Mandi

Solusi Pembentukan Rangka Kursi Furnitur

Solusi Pembentukan Kawat Suku Cadang Otomotif

Solusi Pembentukan Kawat Tembaga Motor Presisi Tinggi

Pembengkokan Kawat Berlapis Enamel dengan Larutan Pengupasan Laser

Pembengkokan Kawat Berlapis Enamel dengan Solusi Pengupasan Mekanis

Solusi Pemrosesan Busbar EV

Solusi Pembengkokan Busbar Potongan Sesuai Panjang

Berita

BERITA

Berita

Berita Perusahaan

Pengumuman korporat

Tren Industri

Wawasan pasar

Pusat Video

Demo & panduan mesin

Unggulan
Pembaruan terbaru dari BELAN dan industri
Jelajahi

Kontak

English Español Português Français Deutsch Русский العربية 日本語 한국어 Italiano Polski Čeština Română Melayu Slovenščina ไทย Türkçe Indonesia Tiếng Việt Nederlands

Proofing Sampel Gratis

Proofing Sampel Gratis
Saksikan Presisi Industri

Dapatkan sampel kawat kustom Anda — dari penarikan hingga pengiriman dalam 48 jam. (Catatan: Biaya sampel berlaku tetapi akan dikembalikan 100% atau dikreditkan ke pesanan resmi pertama Anda.)

Penilaian Solusi Gratis

Unggah gambar produk Anda. Insinyur kami akan memberikan umpan balik kelayakan teknis dalam waktu 48 jam.

Prototipe Cepat

Setelah menerima gambar, kami dapat menyelesaikan produksi sampel dan pengiriman dalam waktu 48 jam secepat mungkin.

Uji Coba Risiko Nol

Diskusikan pembelian peralatan hanya setelah Anda puas dengan sampelnya.

Minta Penawaran Anda

Isi formulir di bawah ini dan tim kami akan menghubungi Anda dalam waktu 48 jam.

Nama *

Perusahaan *

Email *

Mobile *

Negara

ProductDiameterRange

Minat Layanan
Pembengkokan Kawat Pembentukan Busbar Suku Cadang Otomotif kawat berlapis enamel Solusi Kustom

Unggah Gambar (PDF, STEP, IGS)

Klik untuk mengunggahatau seret dan lepas

Didukung: PDF, STEP, IGS, DXF (Maks 15MB)

Berhasil diunggah

0%

Pesan *

Mengirim pesanmu. Tolong tunggu...

Berhasil! Terima kasih sudah mengirim pesan! Pastikan untuk memeriksa Anda Email untuk konfirmasi! Kami akan segera menghubungi Anda.

Ups! , Ada masalah mengirim pesanmu. Silakan coba lagi.

Beranda

Tentang Kami

Produk

Layanan

Aplikasi

Berita

Kontak

Hubungi kami
+86 150 1908 3349

Berita Perusahaan 28 Juli 2026

Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel

Beranda Berita Perusahaan Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel

Kait rak Pembengkokan kawat 3D 5-Sumbu BL-3D-6800

Bagikan:

Selanjutnya Artikel
Bagaimana Mesin Pembengkok Kawat CNC Kepala Ganda Meningkatkan Efisiensi Produksi Otomotif

Daftar Isi

Berita Panas

Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel
28 Juli 2026

Otomasi BELAN: Pelatihan Workshop Mingguan di Tempat Membangun Tim Profesional & Memberikan Layanan Premium untuk Pembeli Global
25 Juli 2026

Mesin Pembengkokan Kawat 3D BELAN Seri Putar Pass TUV Deklarasi Kesesuaian
22 Juli 2026

Produk yang Direkomendasikan

Mesin Pembengkokan Kawat CNC Kepala Putar

Baca Selengkapnya

Mesin Pembengkokan Kawat CNC Kepala Putar

Baca Selengkapnya

Anda mungkin juga suka

Berita Perusahaan
Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel
Baca Selengkapnya

Berita Perusahaan
Otomasi BELAN: Pelatihan Workshop Mingguan di Tempat Membangun Tim Profesional & Memberikan Layanan Premium untuk Pembeli Global
Baca Selengkapnya

Berita Perusahaan
Mesin Pembengkokan Kawat 3D BELAN Seri Putar Pass TUV Deklarasi Kesesuaian
Baca Selengkapnya

BEILANG

Perusahaan Nasional berteknologi tinggi yang berfokus pada R&D, manufaktur, penjualan, dan integrasi sistem peralatan pembengkokan kawat presisi tinggi.

Menu

Beranda

Tentang Kami

Produk

Layanan

Aplikasi

Berita

Kontak

Solusi

Solusi Pembentukan Kawat Industri

Solusi Pembentukan Kawat Tembaga Motor Presisi Tinggi

Solusi Pemrosesan Busbar EV

Kontak

Hotline (24/7)
+86 15019083349

Ruang 103, Gedung3, No.8 Jalan Industri Chiling, Kota Houjie, Kota Dongguan, Provinsi Guangdong, China

belan@wirebendingcnc.com

漏 2026DONGGUAN BELAN AUTOMATION EQUIPMENT CO., LTD. Seluruh hak cipta dilindungi.

Kebijakan Privasi Peta situs

Profil Perusahaan

Nilai Inti

MITRA GLOBAL

Tur Pabrik

Kualifikasi

Mesin Pembengkok Kawat CNC 5-Sumbu BL-3D-5600

Mesin Pembengkok Kawat CNC 5-Sumbu BL-3D-5800

Mesin Pembengkok Kawat 6-Sumbu BL-3D-6800

Mesin Pembengkokan Kawat CNC 6-Sumbu Diameter Kecil BL-3D-6250

Mesin Pembengkokan Kawat CNC 5-Sumbu BL-3D-51400

BL-3D-51200 Mesin Pembengkokan Kawat CNC 5-Sumbu

BL-3D-51600 Mesin Pembengkok Kawat CNC 5-Sumbu

Mesin Pembengkok Kawat CNC 6-Sumbu BL-3D-61200

Alur Pesanan

Dukungan Purna Jual

Makalah Putih

Kebijakan Garansi

Dukungan siklus hidup komprehensif untuk peralatan Anda

Solusi Industri

Solusi Pembentukan Kawat Industri

Solusi Pembentukan Kawat Tembaga Motor Presisi Tinggi

Solusi Pemrosesan Busbar EV

Berita Perusahaan

Tren Industri

Pusat Video

Pembaruan terbaru dari BELAN dan industri

Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel

Ikhtisar Proyek

Kemasan Ekspor Standar

Mengapa Memilih Mesin Pembengkok Kawat Kepala Rotary Kami?

Parameter Teknis Utama

Keunggulan Inti

Manajemen Kualitas Ekspor yang Ketat

Solusi Otomasi Global & Prospek Masa Depan

Bagaimana Mesin Pembengkok Kawat CNC Kepala Ganda Meningkatkan Efisiensi Produksi Otomotif

Produk yang Direkomendasikan

Anda mungkin juga suka

Mesin Membengkokkan Kawat Kepala Putar BL-3D-5800 Untuk Kait Rak Israel

Otomasi BELAN: Pelatihan Workshop Mingguan di Tempat Membangun Tim Profesional & Memberikan Layanan Premium untuk Pembeli Global

Mesin Pembengkokan Kawat 3D BELAN Seri Putar Pass TUV Deklarasi Kesesuaian
